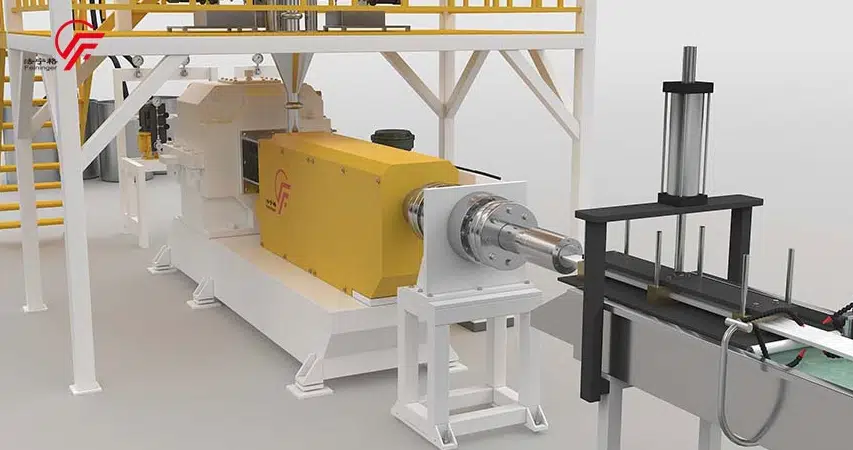

What "High-Capacity" Really Means in an XPS Extrusion Line

1. Introduction

When calculating the ROI of a new xps extrusion line, many plant managers fall into the "nameplate capacity" trap. They purchase a system rated for 1,000 kg/h, only to face board thickness variations, high scrap rates, and constant extruder overheating during continuous runs.

True high capacity is not about peak hourly throughput; it is about sustained, stable yield under real-world factory floor conditions.

If your machinery cannot run continuously without manual adjustments, it is simply an over-stressed system running at its physical limit. For B2B buyers, choosing a reliable xps extruder engineered for continuous, high-yield stability is the only way to secure a rapid payback.

2. Real Definition of True High-Capacity XPS Extrusion Line

A high-capacity production setup is defined by the integration of several key engineering factors, rather than a single peak throughput number.

2.1 Sustained Stable Throughput

True capacity is measured by continuous uptime. The line must operate for weeks with minimal fluctuation in melt pressure, die-head temperature, and blowing agent dosing.

2.2 Full Line System Matching

An extrusion line is a continuous chain. If your primary twin-screw unit plasticizes 1,200 kg/h, but your downstream calibrator can only cool and shape 800 kg/h, your true capacity is capped at 800 kg/h.

2.3 Adaptability to Local Regional Power & Workshop Conditions

Robust cooling reserves and advanced electrical filtration are necessary to handle ambient summer temperatures exceeding 40°C and local voltage fluctuations without stalling.

2.4 Low Downtime & High Waste Recycling Compatibility

Raw materials represent up to 70% of XPS production costs. High-capacity systems must process recycled polystyrene (GPPS/EPS) seamlessly. Integrating a dedicated recycling pelletizing machine directly into your feeding loop keeps output high while cutting material costs.

3. 4 Fatal Selection Mistakes When Buying XPS Extruder

Mistake 1: Chasing Maximum Weight, Ignoring Thickness Limits

Producing 20mm thin boards requires much faster linear line speeds than 100mm boards. If your downstream haul-off and cutting units cannot handle high speeds, you will never reach rated capacity on thin products.

Mistake 2: Neglecting Auxiliary Supporting Equipment

A high-power extruder paired with cheap, low-pressure gas dosing pumps will fail. If your CO₂ injection system cannot deliver steady pressure, you will suffer from collapsed cell structures.

Mistake 3: Ignoring Regional Environmental Rules

Buying an extruder designed primarily for HCFCs (R22/R142b) is a massive risk under global F-gas phase-outs. Retrofitting to 100% CO₂ later is extremely costly due to the high-pressure ratings required.

Mistake 4: Disregarding Local Spare Parts Supply

A blown PLC card or damaged heating band can halt your line. Without rapid spare parts dispatch and remote diagnostics, a minor failure can lead to days of lost revenue.

4. Regional High-Capacity XPS Extruder Configuration Reference

To help you match your regional market demands with the right machinery, consider these common configurations:

EU Large Factory

• Target Market: High-density, thick insulation boards (80mm to 150mm) meeting strict thermal standards.

• Key Specs: FS-135/300 Twin/Single screw configuration, 100% CO₂ / Ethanol eco-foaming agents.

• Essential Auxiliaries: Fully automated downstream stacking, face-peeling, and inline packaging systems.

Southeast Asia & Mid-East Mass Production Plants

• Target Market: High-volume building construction, roof insulation, and under-slab boards (20mm to 75mm).

• Key Specs: FS-90/200 Twin/Single screw configuration, CO₂ + LPG/DME foaming setup.

• Essential Auxiliaries: High-speed edge trimming, surface grooving, and high-capacity inline recycling.

Small & Medium Factory Expansion Upgrade

• Target Market: Diversified regional supply, specialized building backboards, or custom packaging profiles.

• Key Specs: FS-75/150 compact twin/single screw line, offering flexible output adjustments from 200 to 350 kg/h.

• Essential Auxiliaries: Interchangeable die lips and modular downstream integration for specialized xps pipe production lines.

5. Core Hardware That Decides Real High Capacity on An XPS

The overall capacity and reliability of an extrusion system rely on several critical hardware components:

• Parallel Twin-Screw Main Extruder: Features specialized L/D (Length-to-Diameter) ratios and high-torque gearboxes to ensure thorough plasticization at lower melt temperatures.

• Precise CO₂ Foaming Metering System: Uses high-pressure, multi-stage diaphragm pumps to deliver consistent gas dosing, regardless of pressure fluctuations in the barrel.

• Multi-Stage Constant Temperature Cooling System: Houses specialized inner-cooling channels in the secondary single-screw extruder to cool the polymer melt uniformly before it reaches the die head.

• Intelligent VFD Power Control System: Uses variable frequency drives (VFD) to synchronize feeding, extrusion, and pulling speeds, protecting motors against power surges.

6. FAQs From Global Mechanical Procurement Engineers

Is a twin-screw extruder always better than a single-screw for high-capacity XPS production?

Yes, for the primary plasticizing stage. A twin-screw design provides superior mixing and handles recycled materials more effectively. For the secondary cooling stage, a large single-screw extruder remains the industry standard for stabilizing and cooling the melt before extrusion.

Can a high-capacity XPS extruder run fully with recycled PS raw materials?

Yes. Feininger systems feature high-torque twin screws and specialized melt filtration units that allow plants to run up to 100% recycled PS material (recycled EPS/GPPS pellets), helping to reduce raw material costs.

What is the standard delivery and on-site installation cycle for overseas orders?

The manufacturing cycle is typically 90 to 120 days. Once the machinery arrives at your factory, on-site mechanical installation, electrical connection, and commissioning take approximately 15 to 25 days.

7. Conclusion & CTA

A true high-capacity xps extrusion line is built on balanced system design, precise pressure control, and long-term mechanical reliability.

At Feininger, we combine polymer foaming expertise with robust machinery engineering to deliver cost-effective, environmentally friendly extrusion systems tailored to your local market requirements.

Ready to optimize your production output? Contact Feininger's technical team today to discuss your project requirements and receive a customized machinery proposal.
