Graphite EPS Extruded Production Line

New research and development of graphite EPS production line adopts the scientific design of extruder extrusion equipment. Feininger has rich production experience and parallel double screw design of advanced ideas, through the uniform temperature of the heat exchanger, the hole is not blocked, make the finished products with perfect quality.

PET production line

Feininger extruders are designed to ensure high performance, low energy consumption, durability and versatility for companies in the plastics industry. Each EPS production line is modular and every detail can be customized. Thanks to Feininger's accessories and machines: the best technology to ensure high productivity and long-term stable performance.

PET production line

Feininger's new graphite EPS raw material production line adopts the design of scientific extruder.Rich production experience and advanced concept of parallel twin screw design, through uniform temperature heat exchanger, discharge hole is not blocked, so that the finished product has excellent quality.

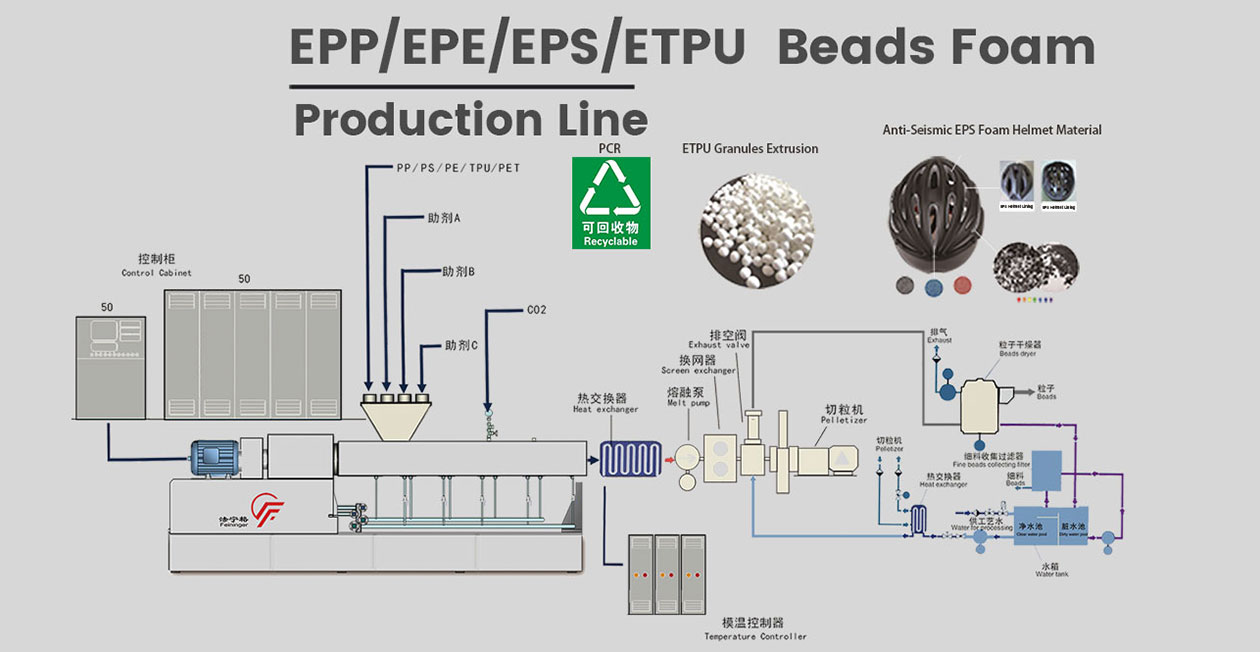

Thermoplastic foam particles are molded by extrusion under water, which requires a high water pressure.With the scientifically designed water temperature and water pressure, the discharge hole is not blocked, and the foam in the pipeline in the early stage is also avoided. After centrifugal drying, vibration cooling beads are required to adopt bottom-up vibration design to ensure more effective production and high-quality products.

At present, Farninger has rich experience in the production of graphite EPS and free technical training for customers. Farninger's graphite EPS production line can bring customers effective and stable equipment operation and greater benefits, without the need to spend a lot of time and cost on equipment debugging and operation.

Technical Data

Graphite EPS, EPP, EPE, ETPU Beads Extrusion
Model Extruder type Max screw speed Max drive Output
(kg/hr)
Blowing Agent(Gas) Diameter of beads(mm) Required Space
(L*W*H)
ES-75T TE75 (32/1) 120-280 90kw 400-700 Co2 / HFC / Pentane / Butane 0.6-2.0 30m*6m*8m
ES-95T TE95 (32/1) 120-280 165kw 600-1200 0.6-2.0 40m*8m*8m
ES-110T TE110 (32/1) 120-280 325kW 1000-2000 0.6-2.0 50m*10m*8m

Specification

TE: Twin -screw Extruder
1. Feininger has the scientific extruder design for producing Graphite EPS beads with rich production experience. The advanced concept of parallel twin screw design can make our materials mixed in the screw in a short time. Then through the heat exchanger with uniform temperature, the discharge hole is not blocked, so that the finished beads have perfect quality.

2. The thermoplastic foam beads in the extrusion process need to be pelletized underwater, which requires high water pressure. Through scientific water temperature and water pressure design, the discharge hole will not be blocked, and the early blistering of the pipeline is avoided.

3. After centrifugal drying the beads need to be cooled down by vibration with bottom-up vibration design, making sure of more effective production and high-quality beads.

4. After vibration and cooling swinging vibration screen is required. With a large capacity of vibration screen, the sieve hole fails to be blocked

5. Currently, Feininger owns three Graphite EPS beads extrusion lines. With rich production experience and free training of process and technology. Feininger brings customers effectively stable machine running and benefit maximization, instead of too much time and cost is taken.

The Advantages We Offer at a Glance

Graphite EPS extrusion line can be completed from 200 kg/h to 2000 kg/h production capacity
Complete automatic production line
Turnkey Engineering Services (from consulting to operation)
Online remote analysis, diagnosis and technical support

Graphite EPS Beads / Board
