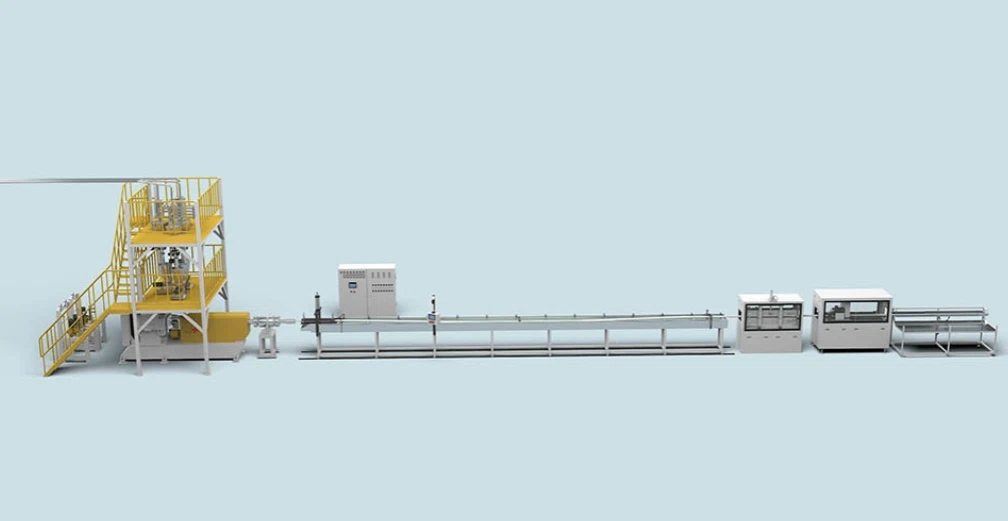

Feininger High-Capacity XPS Foam Board Production Lines

1. Introduction

For B2B procurement managers in the insulation industry, investing in an extrusion system is a major capital decision.

According to the latest global XPS extrusion line market report, the rising global demand for energy-efficient buildings is driving manufacturers to upgrade to high-yield machinery. A high-performance xps foam board production line must deliver consistent board density, precise dimensional control, and compliance with modern environmental standards.

Feininger bridges the gap between premium-priced European equipment and low-end machinery. As a pioneer in extrusion technology, we design high-capacity systems that deliver world-class stability, eco-friendly performance, and rapid ROI.

2. Core Features of Feininger XPS Foam Board Production Line

Our systems integrate four key engineering technologies to ensure stable, high-yield production:

• High-Torque Twin/Single Screw Extruder: The primary twin-screw unit ensures optimal melting and mixing, while the secondary single-screw cool-down extruder stabilizes pressure and temperature before the die.

• DCS Intelligent Feeding System: Multi-component loss-in-weight feeders continuously monitor and adjust raw material ratios, keeping variations under 0.5%.

• Multi-Stage Cooling & Molding: Accurate temperature control via oil and water cooling prevents board warping and maintains tight thickness tolerances.

• Integrated Downstream Cutting: High-precision longitudinal and cross-cutting systems track extrusion speeds in real-time for perfectly square edges.

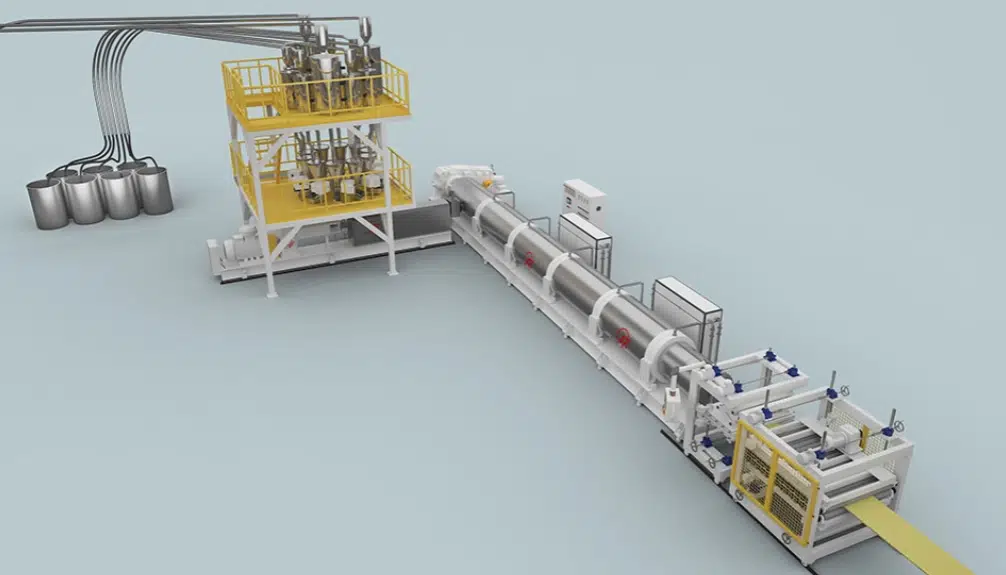

3. Unique Competitive Advantages of Feininger China XPS Machine

When evaluating a china xps machine, smart buyers focus on long-term operational costs and compliance.

• 100% CO₂ Green Foaming: Our zero-ODP and ultra-low GWP CO₂/Ethanol technology complies with strict global environmental regulations while reducing gas costs.

• Highly Cost-Effective: Achieve European-standard output rates, automated controls, and structural durability at a fraction of the capital investment.

• Turnkey & Customizable Solutions: We tailor systems from 200 kg/h to over 1,500 kg/h, delivering complete factory layouts, installation, and commissioning.

• 24/7 Global After-Sales Support: Remote diagnostics, fast parts delivery, and field engineers ensure your production line keeps running smoothly.

4. Standard & Optional Full Line Configuration

Feininger systems are highly modular, allowing you to customize your line based on budget and target applications.

Standard Configuration

• Vacuum raw material feeding and gravimetric dosing units.

• Primary twin-screw and secondary single-screw extruders.

• High-pressure CO₂/Ethanol gas injection station.

• Precision extrusion die head and calibrator.

• High-speed cross-cutters and longitudinal trimming units.

Optional Auxiliary Equipment

• On-line recycling systems that instantly granulate and reuse edge trims.

• Surface grooving, embossing, and skinning machines.

• Lamination modules for producing xps gypsum cornices and backing boards.

5. FS Series Machine Parameter Specification Table

The following technical specifications represent our core high-capacity configurations. All output boards can be calibrated to meet global standards, including the ASTM C578 thermal insulation specification for density and compressive strength.

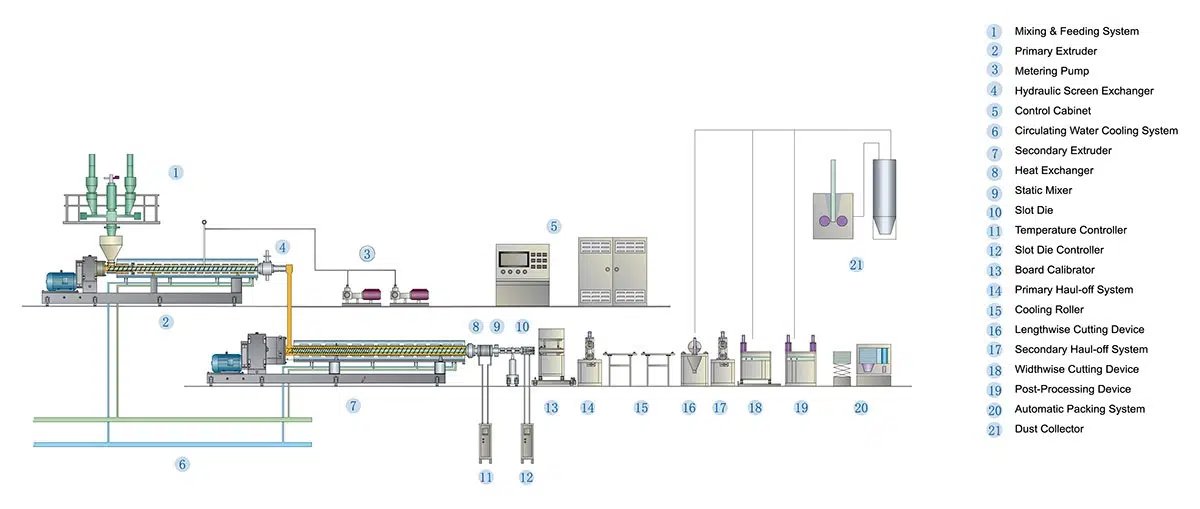

6. Production Process Flow of XPS Extrusion Line

1.Dosing & Mixing：Raw Material Stage

Polystyrene resin and additives are metered and fed into the primary twin-screw extruder.

2.Melting & Gas Injection：Extrusion Stage

Materials are melted under high pressure, and eco-friendly CO₂/Ethanol is injected into the melt.

3.Cooling & Homogenization：Secondary Extruder

The mixture enters the single-screw extruder to bring the melt to the optimal foaming temperature.

4.Die Extrusion & Shaping：Molding Stage

The melt exits through the slot die, foaming instantly, and is molded to shape by the calibrator.

5.Trimming, Cutting, & Stacking：Downstream Stage

The continuous board is trimmed to size, cross-cut to length, and stacked for curing.

7. Main Application Scenarios of XPS Foam Boards

• Building Thermal Insulation: Ideal for roof, wall, and under-floor insulation in civil constructions.

• Cold Chain Logistics: Used extensively in cold storage facilities and refrigerated truck bodies.

• Civil Infrastructure: Prevent frost heave damage under high-speed railway beds, highways, and airport runways.

⚠️ Procurement Warning: The "Cheap Die Head" Trap

Many first-time buyers try to save costs by purchasing low-cost extrusion machines with non-hardened die heads. Within months, flame retardant additives release trace corrosive acids at high heat, degrading the inner flow channels. This causes uneven flow, thickness variation, and high scrap rates. Always verify that your machine manufacturer uses corrosion-resistant, high-grade alloy steels for all melt-contact parts.

8. Conclusion & CTA

Investing in a high-capacity xps foam board production line from Feininger secures a reliable, eco-friendly system designed for long-term efficiency and maximum yield.

Ready to upgrade your manufacturing capabilities? Contact Feininger's technical team today to receive a customized plant layout, detailed machine quotation, and expert guidance.
