Board Frame Making Machine: Efficient Production of PS Photo Frame & Decorative Profiles

1. Introduction

For manufacturers in the home decor and building materials sectors, shifting consumer preferences demand a move away from traditional materials. Wood and heavy metals are increasingly being replaced by lightweight, moisture-resistant polymers.

To capitalize on this shift, factories require a reliable ps foam sheet extrusion line capable of producing high-definition decorative profiles and photo frames at low unit costs.Investing in a high-efficiency polystyrene extrusion line allows businesses to convert raw polymer materials into premium-looking synthetic wood profiles with minimum scrap rates.

As a leading developer of advanced plastic extrusion machinery, Feininger helps worldwide buyers lower production costs while maintaining strict quality standards.

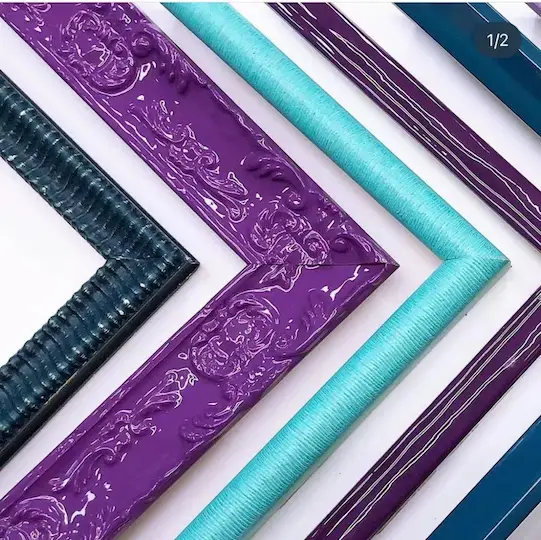

2. Advantages of PS Foam Photo Frame Profiles

Before choosing a ps foam sheet extrusion line, it is essential to understand why polystyrene foam profiles have captured the global decorative market over traditional wood or PVC.

• Lightweight Construction: PS foam profiles feature a dense microcellular structure. This drastically reduces overall weight, which simplifies installation and lowers domestic and international shipping costs.

• Moisture & Mildew Resistance: Unlike wood, PS foam does not absorb water, swell, or support mold growth. This makes it the ideal material for high-humidity areas like bathrooms, kitchens, and basements.

• Infinite Design Flexibility: Our tooling and surface treatment modules allow you to customize color, wood-grain texture, and complex cross-sectional profiles on a single line.



• Lower Material Costs: By utilizing recycled polystyrene and precise physical foaming, the cost per meter of a PS profile is up to 50% lower than solid wood and 20% lower than traditional PVC.

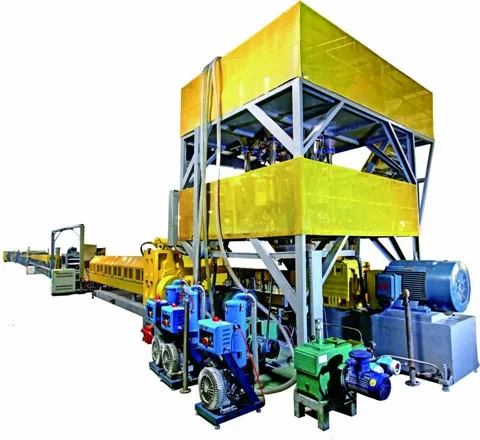

3. Core Components of Professional Polystyrene Extrusion Line

A high-performance polystyrene extrusion line relies on synchronized hardware to ensure uniform density and flawless surface finishes.

Specialized Main Extruder

Our single-screw or co-rotating twin-screw extruders are specifically designed for PS physical foaming. The screw configuration features precise shear sections that mix the blowing agents, pigments, and recycled polymers thoroughly without degrading the melt.

High-Precision Profile Die Head & Molds

The die head controls the pressure drop required for foaming. Feininger's CAD-optimized die channels ensure balanced flow velocity across the entire cross-section, eliminating structural weak points and dimensional warping.

Vacuum Calibration & Cooling System

After exiting the die, the hot, foamed profile is rapidly cooled inside a vacuum calibration sleeve. The water-cooling bath maintains exact dimensional stability, guaranteeing that every batch of frame molding matches your technical drawings.

Inline Embossing, Foil Lamination & Cutter

To achieve a wood-grain or metallic finish, the line integrates inline hot-embossing rollers and thermal foil laminators. A non-dust tracking cutter then slices the finished profile to your programmed length without leaving jagged edges.

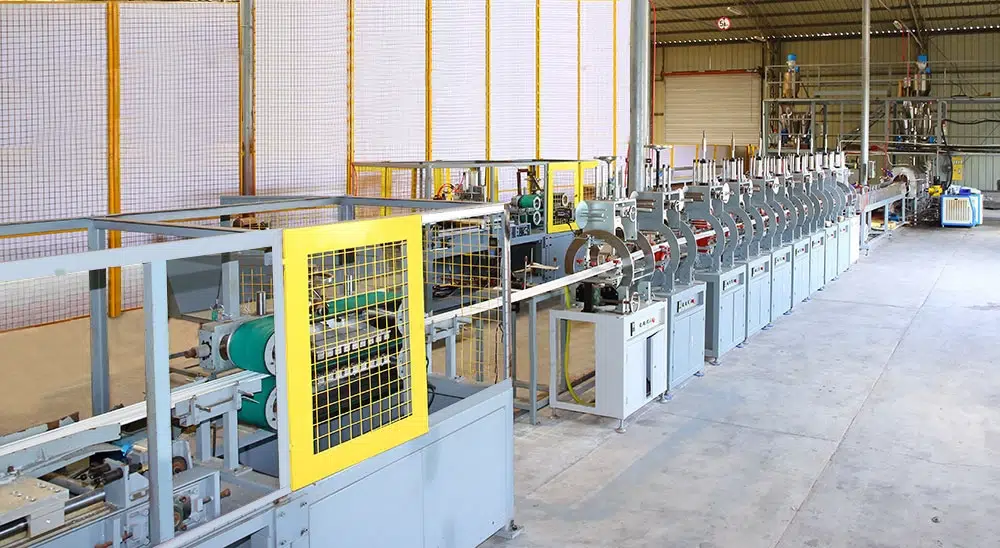

4. Standard Production Flow of PS Board Frame Profiles

Operating a modern decorative profile factory involves a highly automated, continuous physical sequence:

1.Mixing & Dosing：

GPPS/HIPS resin, foaming agents, nucleating agents, and colorants are blended in specific ratios.

2.Plasticization & Foaming：

The mixture is heated and melted inside the extruder barrel under high pressure, initiating the microcellular foaming process.

3.Die Forming & Calibration：

The foamed melt passes through the custom profile die head and enters the vacuum calibrator to lock in its cross-sectional shape.

4.Water Bath Cooling：

The formed profile is pulled through long water-cooling tanks to cool the core material completely and prevent shrinkage.

5.Inline Foil Lamination：

Embossing wheels press wood textures into the surface while hot stamping foils apply patterns, metallic finishes, or colors.

6.Precision Cutting：

The continuous profile is pulled by rubber caterpillar belts to the automated cutter, which trims it into exact lengths.

5. Feininger Board Frame Making Machine Strengths

Selecting Feininger means partnering with an engineering-first manufacturer that prioritizes durability and operational efficiency:

• Optimized High-Percentage Recycling Compatibility: Our screw and barrel designs easily process up to 80% recycled polystyrene pellets. You can pair the line directly with our recycling pelletizing machine to close your waste loop and reduce raw material costs.

• Exceptional Energy Efficiency: Feininger extrusion lines utilize electromagnetic heating and energy-efficient drive motors, reducing power consumption by up to 30% compared to standard machinery models.

• Precision Die Engineering: We supply custom, wear-resistant alloy molds designed for easy changeovers, allowing you to switch frame designs with minimal downtime.

• Turnkey Global Project Delivery: From plant layout and electrical planning to on-site commissioning and operator training, we provide a complete setup experience to get your plant running quickly.

6. Conclusion

The demand for cost-effective, eco-friendly alternative building materials is growing rapidly. Investing in a ps foam sheet extrusion line from Feininger gives you the capability to produce high-margin photo frames, mirror borders, and baseboard moldings.

Our advanced polystyrene extrusion line technologies ensure that your factory can produce high-quality decorative profiles with low scrap rates and minimal energy costs.
