Why Ordinary XPS Lines Fail to Produce Qualified Waterproof Tile Backer Board

The Common Quality Crisis in Global XPS Tile Backer Market

Market demand for waterproof substrate for wet‑area tiling keeps growing worldwide. Many foam manufacturers try to expand product portfolios by running tile‑backer production on their existing general‑purpose extrusion setups. XPS tile backer board has unique physical requirements that standard insulation‑oriented hardware cannot fully satisfy.

As a result, distributors and end‑users keep facing recurring field failures. Real‑world complaints cover tile hollowing, noticeable board warping after installation, excessive water‑absorption rates, inter‑layer delamination, and weak bonding between foam substrate and polymer‑mortar coating. These defects trigger site rework, product returns, and substantial financial loss for material producers.

Tile Backer Board VS Standard XPS Insulation Board

At first glance, tile backer boards look similar to regular extruded polystyrene panels. But performance targets diverge significantly when it comes to wet‑area laminated applications. We list critical gaps below.

• Tight flatness and anti‑warping requirement: Laminated foam board for tiling must stay dimension‑stable after mortar coating; minor deformation will directly cause tile cracking or hollowing risk.

• Higher closed‑cell rate threshold: Zero local open‑cell spots are essential to block moisture penetration in shower and bathroom environments.

• Narrow density tolerance for mortar lamination: Density swing must remain limited; otherwise adhesive and fiberglass layers cannot form consistent bonding strength.

• Low tolerance for surface dust and cell inconsistency: Even fine residual particles or uneven foam cells will weaken composite inter‑face reliability.

• Feininger XPS Tile Backer Board Production Line video:

Four Typical Defects Caused by Ordinary XPS Extrusion Equipment

General‑purpose XPS foam board manufacturing lines are engineered for building thermal‑insulation panels. Their hardware and parameter logic prioritize thermal conductivity and output volume, rather than lamination‑grade surface quality and stress balance. Four frequent production defects appear when repurposing these lines for backer‑board output.

Board Warping & Deformation

Standard calibrator‑cooling units are tuned for wide, thin insulation boards. Waterproof tile backer material needs uniform rigidity across the whole sheet. Using original cooling modules creates uneven internal stress inside extruded polystyrene foam plastic board. Residual stress slowly releases after cutting and lamination, bringing visible warping weeks after production.

Unstable Foam Density & Uneven Cell Structure

Most old‑generation lines adopt relatively coarse CO₂ metering logic. Without high‑precision real‑time gas compensation, density fluctuates batch‑to‑batch. Unstable foam properties directly undermine mortar‑adhesion performance for finished backer products.

High Water Absorption & Poor Waterproof Performance

Universal flat die‑heads deliver uneven melt‑outlet pressure. Local weak zones and micro open‑cell areas appear on panel sections. Those tiny openings become hidden moisture channels, bringing long‑term water‑leakage risks for wet‑space construction projects.

Surface Residue Dust Causes Lamination Failure

Conventional cross‑cutting equipment generates fine foam dust across sheet surfaces. If dust cannot be fully removed before downstream coating, dust residues break the bonding interface and result in large‑area delamination of composite layers.

Why Feininger Dedicated Tile Backer Extrusion Line Solves All Defects

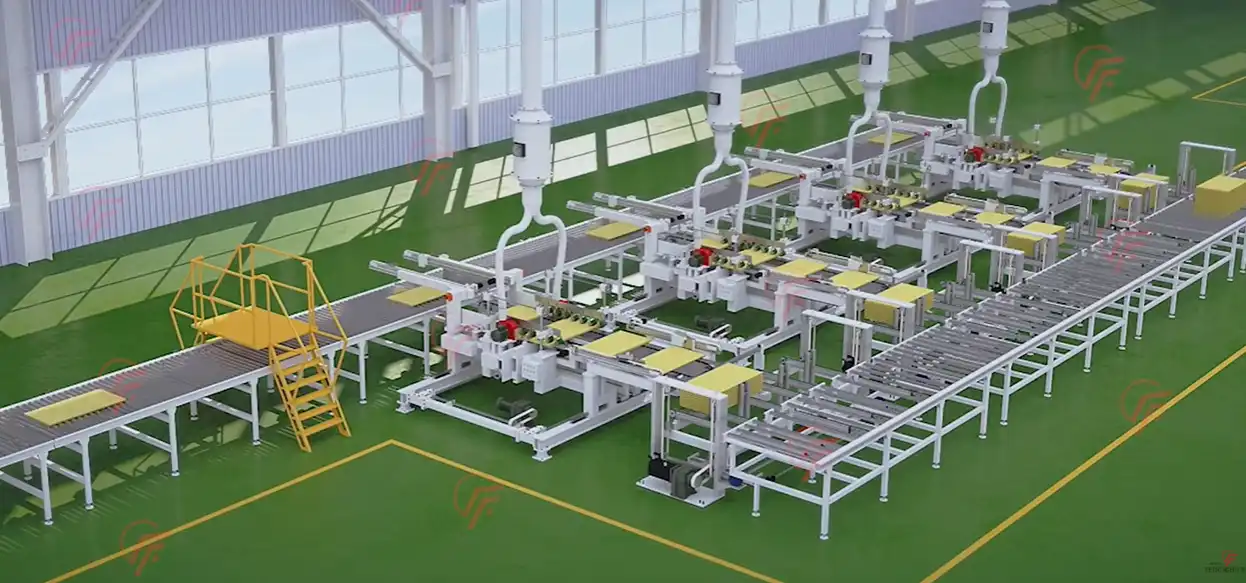

Targeted hardware modification rather than simple parameter adjustment is required to avoid the above‑mentioned pitfalls. Our XPS backer board machine optimizes every station for lamination‑grade substrate production.

• Special balanced cooling‑shaping system, designed to release internal stress and control anti‑warping performance for thick‑and‑rigid backer sheets

• High‑precision CO₂ physical foaming control loop, keeping foam density within a tight tolerance range throughout continuous‑run production

• Dedicated flat die‑head configuration for evenly distributed melt pressure, helping maintain high and consistent closed‑cell ratio

• Integrated dust‑removal plus precise cutting system, eliminating surface particle contamination ahead of mortar‑fiberglass composite process

• Optimized overall extrusion‑pressure profile, consistently producing foam substrate suitable for subsequent lamination workflows.

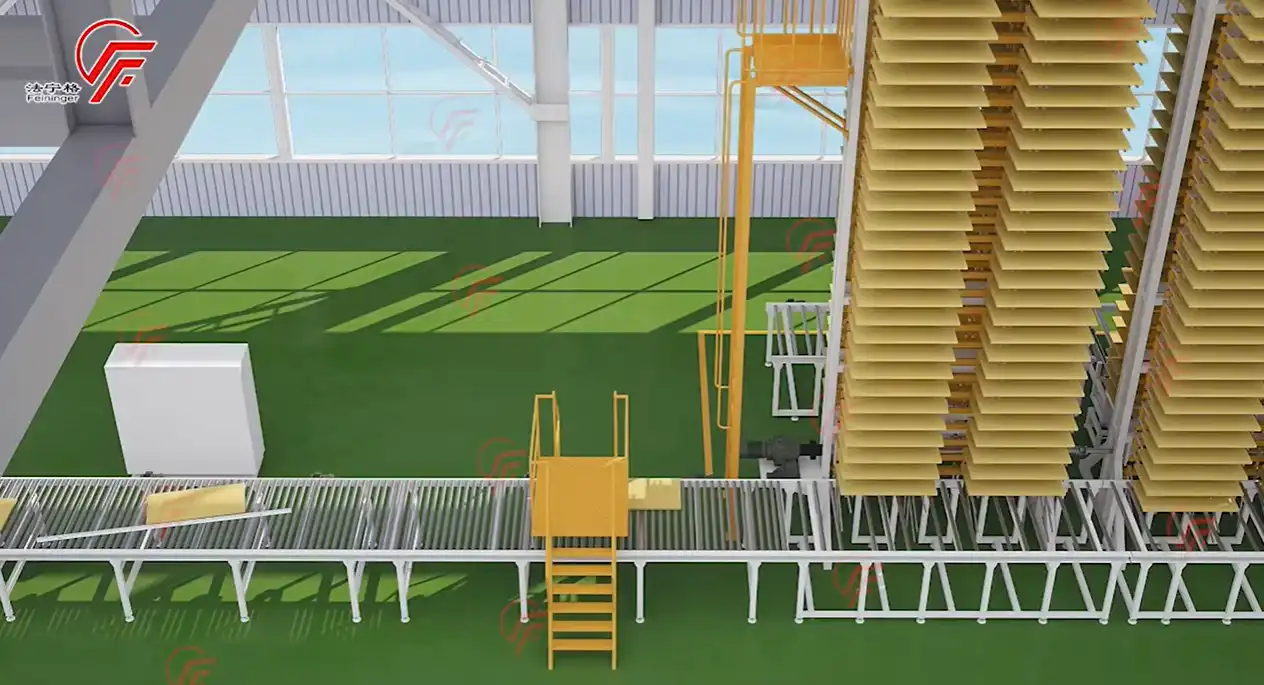

Our accumulated experience on XPS foam board production line makes these customized upgrades technically feasible for foam manufacturers.

Upgrade Solution for Existing XPS Factory

Plant owners already owning conventional extruders have two practical paths to enter the qualified tile‑backer market, depending on budget and expected production scale.

• Old‑line partial upgrade: For small‑to‑medium trial‑volume business. Replace key modules including CO₂ metering unit, cooling calibrator, plus add‑on dust‑removal station. It enables tentative manufacturing without full‑plant reinvestment, but output scale still has upper limits inherited from the original host extruder.

• Full‑new dedicated tile‑backer line: For factories targeting large‑volume export‑grade waterproof backer‑board orders. Every station is purpose‑built from extruder to post‑processing, delivering stable batch‑quality and maximum uptime for mass‑production cycles.

FAQs

Q1: Why can’t ordinary XPS foam lines produce qualified tile backer boards?

Standard XPS extrusion hardware is built for thermal‑insulation panels. Its cooling system, gas‑metering precision, die‑head pressure distribution, and post‑processing cutting‑dust handling do not satisfy the strict flatness, density stability, and surface‑cleanness requirements for laminated waterproof backer substrate. Even tuning process parameters cannot fully offset inherent hardware limitations.

Q2: What key parameters ensure waterproof performance of XPS tile backer boards?

Three groups of indicators matter most: stable high closed‑cell rate without local open‑cell spots; narrow‑range foam‑density consistency controlled by an accurate physical‑foaming system; low‑stress balanced cooling to avoid post‑production deformation. All these indicators trace back to extrusion‑line hardware configuration, not only raw‑material formula adjustment.

Q3: What is a good waterproof backing board for tiles?

Qualified XPS tile backer board maintains stable dimensional performance, low water‑absorption rate, and clean bonding surface for fiberglass‑mortar composite. Such finished products can only be reliably produced on purpose‑optimized XPS backer board machines, instead of modified general‑purpose insulation extrusion equipment.

Conclusion & CTA

Many manufacturing operators underestimate how special tile‑backer substrate really is. Repurposing ordinary XPS hardware brings persistent quality risks, product rejection, and lost client trust. Either a targeted partial‑upgrade or brand‑new dedicated‑line setup can help manufacturers escape this quality trap.

If you are evaluating XPS foam board manufacturing projects for waterproof tile‑backer output, reach out to our technical team to discuss your existing‑line assessment or new‑project configuration suggestions.
