Xps Tile Backer Board Extrusion Line for XPS Foam Panels

For building material manufacturers targeting wet-area tiling projects, traditional cement backer boards have long been a persistent pain point. They absorb moisture, grow mold over time, and add unnecessary weight that drives up shipping and installation costs. As demand for durable, lightweight tiling substrates rises, xps tile backer board has emerged as the high-performance alternative — and producing it consistently requires a purpose-built extruded polystyrene production line.

Unlike standard XPS insulation boards, tile backer boards demand tighter density control and integrated surface reinforcement to support heavy tile and stone. For factories looking to capture this fast-growing market segment, investing in a dedicated line delivers higher product margins and stronger differentiation from commodity board suppliers.

What Is XPS Tile Backer Board & Its Core Advantages

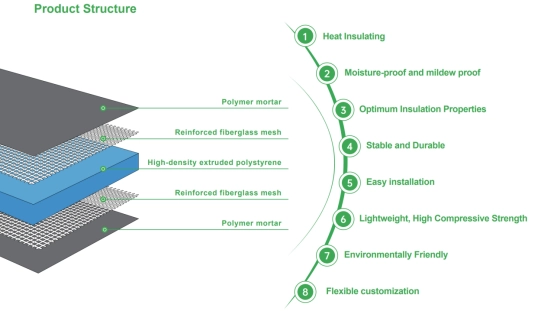

An XPS tile backer board is a rigid, high-strength closed-cell extruded polystyrene foam panel, specially engineered as a premium tiling substrate for humid building spaces. It features a reliable five-layer composite structure:

• High-density XPS foam core

• Two layers of high-tensile reinforced fiberglass mesh

• Two outer protective coats of polymer-modified mortar

This integrated design effectively solves common defects of traditional substrates, including tile hollowing, water seepage, and long-term mildew growth in damp environments.

Core Performance Metrics

Produced on a fully calibrated and optimized extrusion line, Feininger XPS tile backer boards strictly comply with ASTM C578-23, the global authoritative standard for rigid cellular polystyrene thermal insulation.

Key certified performance parameters include:

• Closed-cell rate: ≥90%

• Water absorption: ＜1% (excellent waterproof performance)

• Standard compressive strength: ≥350 kPa

• Custom high-strength model: up to 1200 kPa for heavy-load scenarios

These stable physical properties guarantee long-term structural stability and consistent waterproof insulation performance in complex wet construction environments.

Primary Application Scenarios

With superior waterproofing, moisture resistance, load-bearing capacity, and anti-aging performance, XPS tile backer boards serve all moisture-prone building scenarios:

• Shower walls, bathroom floors and kitchen backsplashes

• Swimming pool surrounds and wet leisure facilities

• Basement wall and floor substrates

• Underfloor heating insulation systems

Core Configuration of Dedicated XPS Tile Backer Board Extrusion Line

A reliable tile backer board line builds on the foundation of a standard xps foam board production line, with added modules for surface lamination and precision sizing. Feininger’s integrated design ensures all units work in sync to deliver consistent board quality across long production runs.

Automatic Dosing & Raw Material Mixing System

Accurate material proportioning is the first step to stable foam density. The system automatically blends GPPS/HIPS resin, nucleating agents, flame retardants, and recycled PS pellets according to preset formulas. A vacuum conveying system keeps the workshop clean and reduces manual handling errors.

Twin-Screw Extruder + CO₂ Physical Foaming Unit

A high-torque parallel twin-screw extruder delivers uniform plasticization at lower melt temperatures, protecting polymer integrity. Paired with a precision CO₂ metering system, it creates a fine, uniform closed-cell structure that gives the board its compressive strength and water resistance.

Slot Die & Vacuum Calibration System

The wide-slot die forms the continuous foam slab, while a multi-zone vacuum calibrator locks in exact thickness and flatness. For tile backer boards, thickness tolerance is held to ±0.2mm to ensure even tile adhesion and prevent lippage.

Online Fiberglass Mortar Lamination Station

This is the key difference from a standard insulation board line. Two layers of fiberglass mesh are embedded into polymer mortar coatings on both sides of the foam core in a single pass. The inline process eliminates secondary offline lamination, reducing labor costs and improving bond strength.

High-Precision Cutting & Automatic Stacking Unit

After final cooling, the continuous panel is trimmed to width and cut to fixed lengths. A servo-driven cross cutter delivers clean, burr-free edges. Finished boards are automatically stacked and packaged, ready for shipment.

Backer Board Line VS Standard XPS Foam Board Line

Many factories first consider modifying an existing building backing board extrusion line to produce tile backer boards. While possible, dedicated lines offer three critical advantages:

How to Select the Right Capacity for Your Factory

Feininger XPS tile backer board extrusion lines support full-range customized capacity, with hourly output from 200kg to 3000kg, matching the needs of small, medium and large manufacturers.

• 300–500 kg/h (Small & Medium Factories): Ideal for regional suppliers with mixed product portfolios. Supports rapid die and process switching for both standard insulation boards and high-margin tile backer boards, featuring low investment and flexible market adaptation.

• 800–1500 kg/h (Large & Export-Oriented Factories): Full-automatic scale production lines equipped with DCS intelligent centralized control systems. Reduce unit production costs and support bulk order and national chain distribution demands.

Basic factory requirements include stable 380V power supply, sufficient cooling water and compressed air, and a ventilated clean workshop. We provide free professional factory layout design and site planning for all clients.

Common Production Challenges & Optimization Tips

Even well-built lines run into occasional issues. Here are three frequent challenges and practical fixes:

Mortar layer delamination is usually caused by insufficient surface treatment on the foam core, or mismatched lamination temperature. Roughening the board surface slightly before coating and adjusting the pre-heating temperature usually resolves it.

Board warpage after cutting typically stems from uneven cooling across the panel thickness. Adding a gradual cooling zone before cutting, or slowing the line speed slightly, allows internal stresses to release evenly.

Higher-than-expected water absorption points to an open-cell foam structure. Adjusting the CO₂ injection rate, nucleating agent dosage, or die head pressure will close up the cell structure and bring absorption back within spec.

FAQs About XPS Tile Backer Board Manufacturing

Q: Is XPS expanded or extruded?

A: XPS is extruded polystyrene. It is produced via a continuous extrusion and physical foaming process, which creates its uniform closed-cell structure. EPS, by contrast, is molded from pre-expanded beads.

Q: Is XPS foam board a vapor barrier?

A: Yes, high-quality XPS with a closed-cell structure acts as an effective vapor retarder. Its low water vapor transmission rate prevents moisture from passing through the board, making it suitable for wet areas.

Q: What is stronger, EPS or XPS?

A: XPS is significantly stronger than EPS. Its denser, more uniform cell structure delivers higher compressive strength and better resistance to impact and moisture damage.

Q: What are the advantages of XPS insulation?

A: XPS offers excellent thermal insulation, near-zero water absorption, high compressive strength, long-term durability, and lightweight handling. It works for both thermal insulation and structural backing applications.

Conclusion

Producing high-quality xps tile backer board requires more than just a basic foam extruder — it needs a fully integrated, purpose-built line with precise density control and inline composite lamination. For factories targeting the fast-growing wet-area building material market, this investment directly translates to higher-margin products and stronger customer loyalty.

At Feininger, we design and manufacture complete extruded polystyrene production lines tailored to tile backer board specifications. Our systems use mature CO₂ physical foaming technology, support high ratios of recycled PS material, and come with full global installation and after-sales support.
