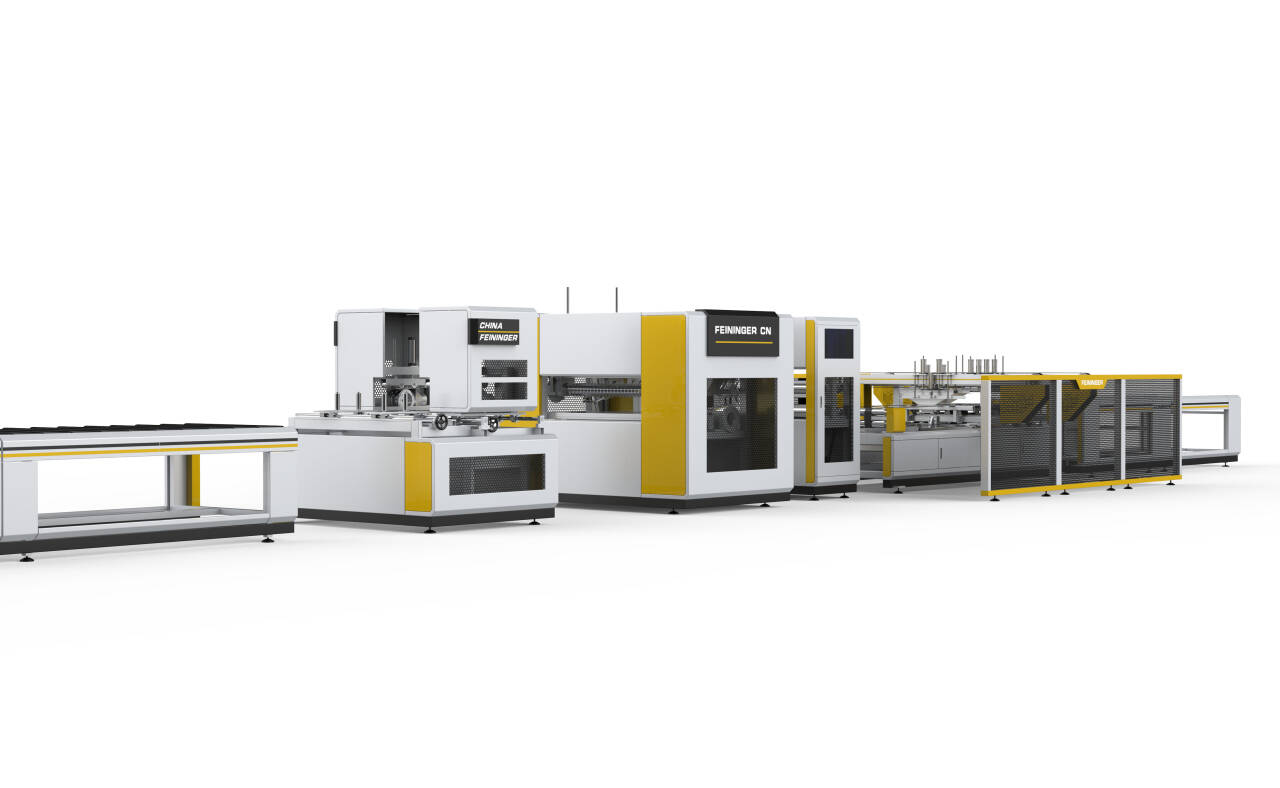

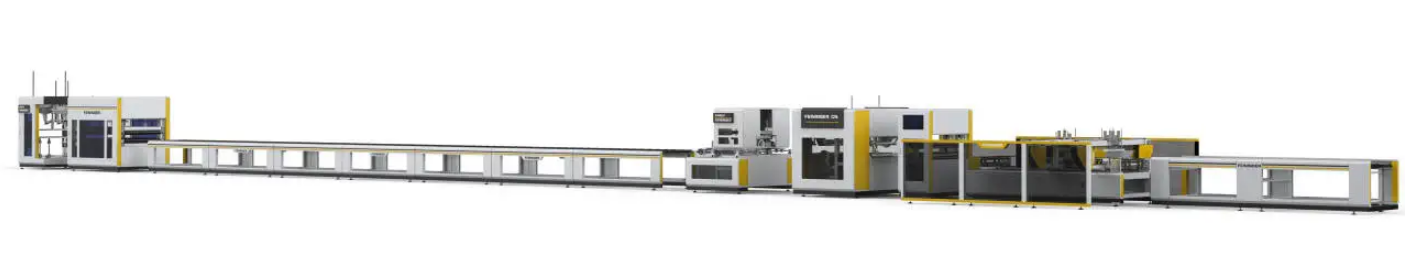

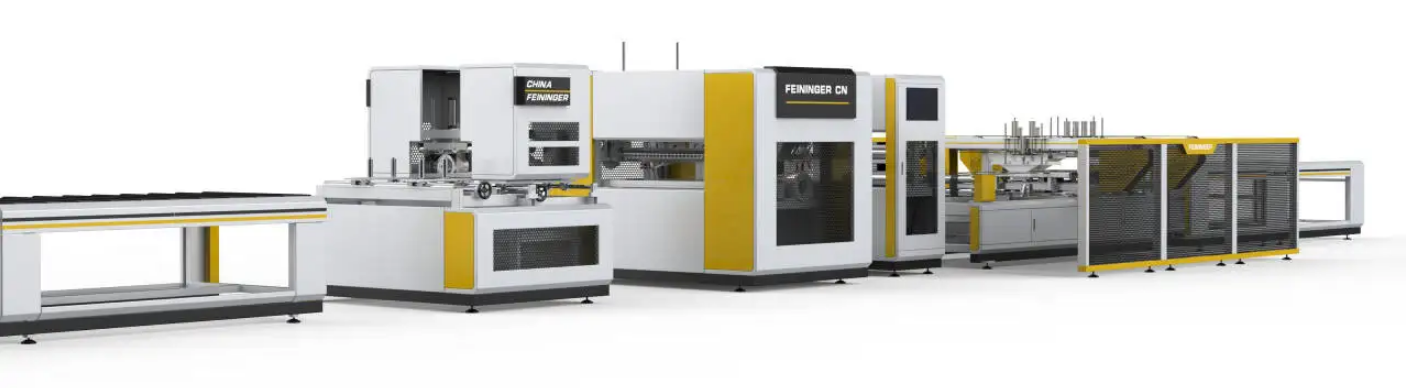

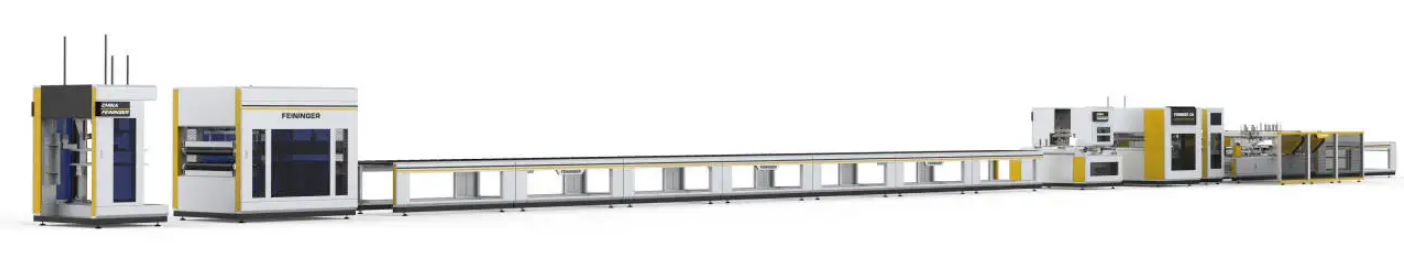

Basic Configuration for XPS Foam Board Machine Production Line

An XPS foam board production line consists of multiple specialized components designed to ensure efficient manufacturing, precise control, and high-quality output. Each stage in the process contributes to the final product’s thermal insulation properties, compressive strength, and uniform cell structure.

In this article, we will discuss the basic configuration of an XPS foam board machine production line, explaining the function and importance of each component.

1. Mixing and Feeding System

The process begins with the Mixing and Feeding System. In this stage, raw materials such as polystyrene resin, blowing agents, nucleating agents, flame retardants, and other additives are carefully measured and blended. A precisely calibrated feeding system is critical, as it ensures that the components mix in the correct proportions. This step sets the foundation for the final foam structure, ensuring that the XPS boards achieve uniform density and excellent thermal insulation properties.

2. Primary Extruder (¢120 Single Screw or ¢75 and ¢95 Double Screws)

The next key component is the Primary Extruder. Depending on the production requirements and desired board characteristics, manufacturers may choose between a ¢120 single screw or a ¢75/¢95 double screw configuration. The primary extruder’s main functions include:

• Melting and Homogenizing: The raw mixture is heated and melted uniformly.

• Initial Foaming: Blowing agents are introduced at this stage, initiating the foaming process.

• Preliminary Shaping: The molten material is formed into a continuous profile, which later solidifies into the foam board.

3. Metering System (Special for CO₂ Technology or Others)

The Metering System is designed to control the precise injection of blowing agents, especially when using CO₂ technology or alternative foaming agents. Accurate metering is essential for:

• Consistency: Ensuring that each board has a uniform cell structure.

• Efficiency: Reducing material consumption and energy costs.

• Environmental Impact: When using CO₂, it aids in creating an eco-friendly process by minimizing the emission of harmful chemicals.

4. Hydraulic Screen Exchanger

The Hydraulic Screen Exchanger plays an important role in the extrusion process by filtering out any impurities or unmelted particles from the melted polymer. It works under hydraulic pressure to:

• Improve Flow Consistency: Ensuring a smooth, uninterrupted extrusion process.

• Enhance Product Quality: By eliminating contaminants, the final foam board exhibits a better appearance and improved structural integrity.

• Protect Downstream Equipment: It prevents blockages that might damage the subsequent machinery.

5. Touch Screen Controller

In today’s automated production environment, the Touch Screen Controller is the command center of the XPS foam board production line. This digital interface provides:

• Real-Time Monitoring: Operators can track temperature, pressure, and material flow.

• Process Adjustments: Quick adjustments can be made to optimize performance and adapt to variations in raw materials.

• User-Friendly Interface: Simplifies operation, reducing the need for extensive training and lowering the risk of human error.

6. Secondary Extruder (¢150 Single Screw or ¢200 Single Screw)

After the primary extrusion and initial foaming, the material moves to the Secondary Extruder. This component can be configured with either a ¢150 or ¢200 single screw, depending on the required output characteristics. The secondary extruder provides:

• Further Melting and Mixing: Ensuring that the foam structure is fully developed.

• Enhanced Uniformity: Contributing to consistent board thickness and density.

• Improved Mechanical Properties: By reprocessing the material, the board gains better compressive strength and stability.

7. Static Mixer

The role of the Static Mixer is to eliminate any remaining inconsistencies in the molten material. Without any moving parts, it uses a series of fixed elements to:

• Achieve Homogeneity: Ensure that the distribution of the blowing agent and additives is uniform.

• Optimize Foaming Process: By balancing the temperature and pressure before entering the shaping stage.

• Reduce Variability: Resulting in foam boards with a consistent cell structure.

8. Slot Die (Temperature Control is Necessary)

The Slot Die is where the material is formed into its final continuous shape. Temperature control at this stage is essential, as it:

• Maintains Dimensional Stability: Prevents premature cooling or overheating, which can affect the board’s final dimensions.

• Ensures Surface Quality: A uniform temperature helps create a smooth, even surface on the foam board.

• Controls Foam Expansion: Optimizes the foaming process to achieve the desired board density and insulation properties.

9. Calibrator

Following the slot die, the Calibrator ensures that the board maintains the correct thickness and shape. This component works by:

• Aligning the Board: Helping to achieve uniform dimensions along the entire length.

• Enhancing Surface Finish: Removing any irregularities that may have formed during extrusion.

• Improving Product Quality: Ensuring the board meets the structural and aesthetic requirements for insulation applications.

10. First Haul-Off System

The First Haul-Off System is responsible for pulling the continuous foam board from the calibration stage. Its functions include:

• Maintaining Tension: Ensuring the board moves steadily without distortion.

• Synchronizing Processes: Coordinating with the extruders and calibrator for smooth transition between production stages.

• Preventing Defects: Avoiding issues such as warping or uneven surfaces.

11. Cooling Roller

After the initial shaping and haul-off, the board enters the Cooling Roller section. Cooling rollers are designed to:

• Rapidly Reduce Temperature: Stabilizing the foam structure to lock in the desired properties.

• Improve Dimensional Accuracy: Preventing shrinkage or expansion that can occur with uneven cooling.

• Enhance Surface Quality: A uniform cooling process contributes to a smooth final product.

12. Width Cutting Machine

The Width Cutting Machine trims the continuous foam board into the required width. This step is crucial because:

• Uniformity: It ensures that all boards have consistent width, an important factor for installation.

• Precision: Accurate cutting minimizes waste and reduces the need for further processing.

• Preparation for Further Processing: Boards with the correct width are easier to handle in subsequent stages.

13. Second Haul-Off System

Following the width cutting, the Second Haul-Off System pulls the foam board through the production line at a consistent speed. It is designed to:

• Maintain Uniform Movement: Synchronizing with the cutting and final processing units.

• Preserve Product Quality: Ensuring that tension and speed do not negatively affect the board’s dimensions.

• Optimize Throughput: Contributing to the overall efficiency of the production line.

14. Cross Cutting Machine

The final component, the Cross Cutting Machine, is where the continuous foam board is segmented into individual panels. This machine offers:

• Precision Cutting: Accurate cuts that result in uniformly sized boards.

• Efficient Production: High-speed cutting minimizes downtime and increases overall production capacity.

• Enhanced Versatility: The ability to cut boards into various sizes based on market requirements.

Conclusion

A fully automated XPS foam board production line consists of multiple interdependent components, each playing a vital role in ensuring high-quality foam board production. From material feeding and extrusion to shaping, cooling, and cutting, each stage must be carefully optimized for efficiency, precision, and cost-effectiveness.

Manufacturers investing in advanced and energy-efficient XPS production lines can achieve higher production yields, lower waste, and improved product quality, making them more competitive in the insulation materials market.
