Foam Extrusion Technology: Core Differences Between Physical and Chemical Foaming

1. Introduction

For industrial manufacturers and B2B machinery procurement managers, mastering the nuances of polymer expansion is critical to product quality and cost control. Modern foam extrusion relies on two primary methodologies to create the cellular structures inside insulation boards, profiles, and sheets.

Choosing between chemical and physical foaming is not just a chemical preference; it determines your plant's entire capital expenditure, raw material costs, and environmental compliance.

2. Core Working Principles of Two Foaming Technologies

The basic goal of both methods is to introduce gas bubbles into a molten polymer matrix, but they achieve this through entirely different mechanisms.

2.1 Chemical Foaming

• Core Definition: This process relies on chemical foaming agents (CFAs) that are pre-mixed with polymer pellets as dry powders or masterbatches.

• Common Foaming Agents: Azodicarbonamide (ADC) for exothermic reactions, or sodium bicarbonate/citric acid blends for endothermic reactions.

• Pore Formation Logic: As the material travels down the extruder barrel, the thermal energy triggers a chemical reaction. The CFAs decompose, releasing gases (like N₂ or CO₂) directly into the molten plastic melt.

• Core Features: Simple setup, low initial hardware investment, but limited expansion ratios.

2.2 Physical Foaming

• Core Definition: This method involves directly injecting gas or volatile liquid blowing agents under extreme high pressure into the polymer melt.

• Common Foaming Agents: Supercritical CO₂, nitrogen N₂, butane, ethanol, or specialized eco-friendly blends.

• Pore Formation Logic: The gas is dissolved into the melt under high pressure. When the pressurized mixture exits through the extrusion die head, the sudden pressure drop causes rapid thermodynamic instability, triggering cell nucleation and expansion.

• Core Features: Requires a specialized high-pressure gas injection system, high torque control, and precise metering. It delivers high expansion ratios.

3. Full-Dimension Comparison of Two Technologies

Choosing the right technology requires balancing upfront costs with long-term performance.

3.1 Environmental & Safety Performance

Chemical decomposition can release volatile organic compounds (VOCs) and leave chemical residues in the final product. Conversely, physical expansion using a modern co2 foam xps production line offers a clean, zero-ODP process. This green approach is essential for passing municipal audits in the EU and North America.

3.2 Foam Cell Structure & Product Performance

Physical processes yield a highly uniform, closed-cell microcellular structure. This structure is crucial for achieving the high compressive strength and low thermal conductivity required by international standards like the ASTM C578 thermal insulation specification. Chemical processes tend to produce larger, less uniform, or open-cell structures.

3.3 Process Difficulty & Equipment Requirements

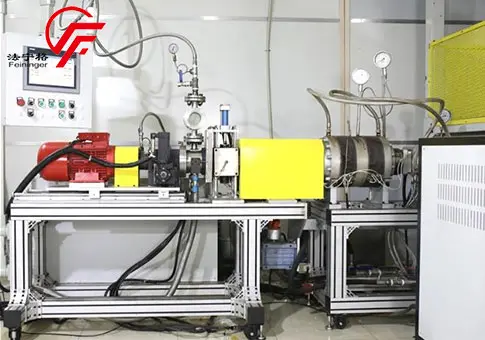

Chemical methods are straightforward and can run on basic single-screw extruders. The physical method requires high-torque twin-screw primary units, specialized high-pressure gas dosing pumps, and a secondary cooling extruder to handle the temperature profile of the melt before foaming.

3.4 Production Cost Structure

While the physical method demands a higher initial capital expenditure (CapEx) for hardware, its operating expenditure (OpEx) is dramatically lower. Because carbon dioxide and nitrogen are significantly cheaper than chemical masterbatches, high-volume plants recoup their equipment costs within the first year of continuous operation.

4. Typical Application Scenarios & Matching Suggestions

Selecting the correct extrusion hardware depends heavily on your target market and product specifications.

4.1 Scenarios Suitable for Chemical Foaming

Chemical expansion is ideal for low-expansion, high-density products where surface finish is more important than thermal insulation value. Typical applications include decorative trim, lightweight faux-wood picture frames, and thin-walled PVC pipes.

4.2 Scenarios Suitable for Physical Foaming

This process is the standard for high-expansion, lightweight materials that demand excellent mechanical and insulation properties:

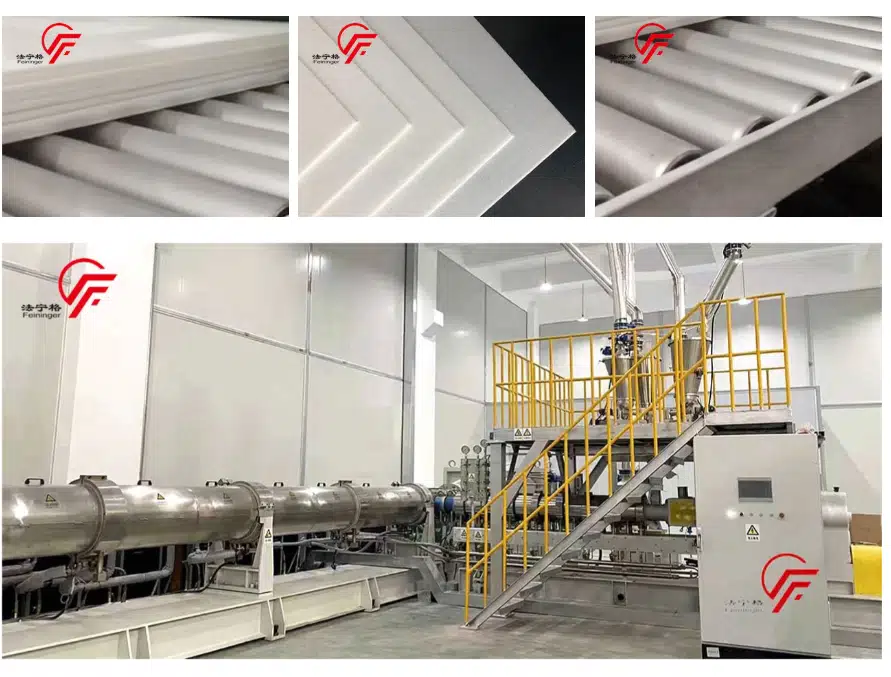

• Building Insulation Panels: High-density, closed-cell XPS boards produced on a tandem co2 foam xps production line.

• Decorative Profiles: Lightweight, high-strength decorative components with dense skin layers.

• High-End Structural Core Material: Lightweight structural sheets produced on specialized PET sheet extrusion lines.

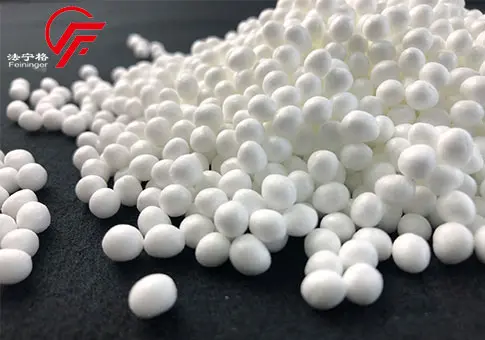

• High-Performance Buffer Beads: Extremely lightweight expandable beads for protective packaging.

• High-Performance Insulation Granules: Expanded materials used in specialized engineering applications, processed on advanced ETPU extruded production lines.

5. Industry Development Trend

The global polymer processing sector is moving decisively toward sustainable, high-efficiency systems. As regulations phase out ozone-depleting substances, physical gas injection—particularly using supercritical carbon dioxide and nitrogen—has become the preferred choice for green field factories.

In addition, the ability of physical systems to process recycled polystyrene (rGPPS) allows manufacturers to lower material costs while aligning with global circular economy goals.

6. Conclusion

Understanding the core differences between chemical and physical foaming is crucial for making the right machinery investment.

While chemical methods offer a low-cost entry point for basic profiles, physical gas injection remains the only viable technology for manufacturing high-performance, eco-friendly insulation boards and structural foam sheets.

As a pioneer in green extrusion engineering, Feininger specializes in designing high-output, eco-friendly systems. Our physical gas injection technology ensures your plant meets modern environmental standards while achieving exceptional material savings and stable yields.
