XPS Thermal Laminator for Composite Insulation Panel Production

Introduction

Standard XPS foam boards cover basic insulation needs, but modern construction, HVAC and industrial insulation markets increasingly demand finished, composite-faced panels. Traditional glue lamination faces common drawbacks including VOC emissions, slow production speed, inconsistent bonding strength and easy delamination after long-term use.

As a mature upgrade solution, the xps thermal laminator realizes completely glue-free thermal bonding, helping foam manufacturers produce high-value laminated foam board with higher stability and lower operational costs. For factories wanting to enrich product categories without building new extrusion lines, thermal lamination equipment is one of the most cost-effective upgrades.

With over 20 years of XPS equipment R&D and manufacturing experience, Feininger is China’s earliest professional XPS extrusion line manufacturer. We independently design and produce matching downstream lamination equipment that perfectly cooperates with mainstream XPS extrusion systems, ensuring higher compatibility and production stability than generic third-party laminators.

What Is XPS Thermal Lamination Technology?

XPS thermal lamination is a physical bonding technology that relies on precise heating and pressure to fuse surface materials with XPS foam substrates. Instead of chemical adhesives, it uses the foam’s own molten skin layer to form an integrated composite structure.

Simplified process flow chart: Feeding → Heating and calendering → Cooling and shaping → Cutting

Core Advantages Over Adhesive Bonding

• Glue‑free processing eliminates VOC release, fully complying with international environmental protection and indoor safety standards.

• Thermal fusion bonding creates stronger, long‑lasting adhesion. Prevents aging, peeling and hollowing issues typical of glue‑bonded products.

• Streamlines production workflows: cuts adhesive procurement costs, shortens production cycles and lowers manual cleaning workload.

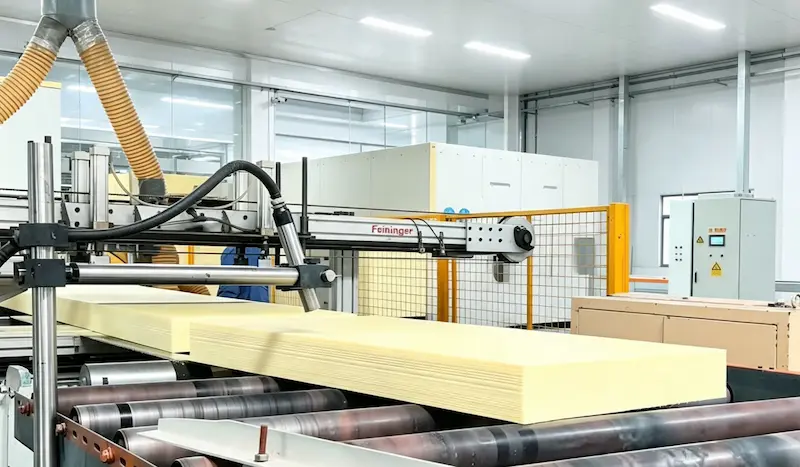

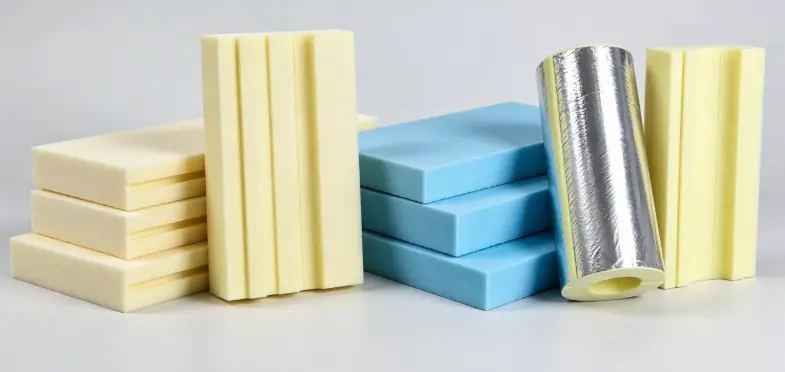

Common Laminated Foam Board Products & Applications

A versatile XPS thermal laminator supports multiple composite products, covering construction, HVAC, pipeline and prefab building industries.

Gypsum-faced XPS composite boards: Widely used for interior partition walls and ceiling insulation. The gypsum surface is directly paintable, improving construction efficiency for residential and commercial projects.

PVC / aluminum foil faced XPS boards: Ideal for HVAC duct insulation and roof integrated waterproof and insulation systems. The foil layer enhances vapor barrier and heat reflection performance.

Color steel sandwich panels: Applied in prefab houses, clean workshops and cold storage enclosures, providing both thermal insulation and structural protection.

Pipeline insulation composite sheets: Specially customized for supporting pipeline thermal preservation projects. It perfectly matches the production rhythm of the XPS pipe production line, realizing integrated board and pipe insulation manufacturing.

Core Configuration of a Reliable XPS Thermal Laminator

Stable lamination quality depends on complete and precise machine configuration. Feininger’s customized thermal laminator consists of four core modules to ensure continuous and stable industrial production.

4.1 Automatic Unwinding & Feeding Unit

Equipped with automatic tension control, the unwinding system keeps different roll materials flat and evenly fed. It effectively avoids material deviation and wrinkling caused by unstable tension during high-speed operation.

4.2 Constant Temperature Heating & Laminating Station

Multi-zone independent temperature control ensures uniform heating across the entire board width. Different temperature parameters can be set according to foam density and facing material types, preventing under-heating bonding failure or overheating foam deformation.

4.3 Pressure Roller & Cooling Section

High-precision silicone pressure rollers provide balanced and consistent pressure. The matched gradient cooling section quickly fixes the composite structure, eliminating internal stress and ensuring flat finished boards.

4.4 Edge Trimming & Length Cutting Unit

Servo-driven trimming and cross-cutting systems ensure accurate board size and neat edges. The finished products can be directly stacked and packaged, reducing secondary processing procedures.

How to Integrate Thermal Laminator with Your Existing XPS Extrusion Line

One of the biggest advantages of Feininger thermal laminators is high compatibility with mainstream extrusion equipment. It supports two integration modes: inline integration and offline standalone operation.

Inline installation behind the XPS foam board production line makes full use of the residual heat of newly extruded boards, saving heating energy and realizing one-step continuous molding.

For factories with mature inventory stock, offline standalone configuration is also available. It can process existing finished XPS boards flexibly without affecting daily extrusion production schedules.

As a full-set equipment manufacturer, Feininger provides unified mechanical matching, electrical docking and process debugging services, avoiding compatibility problems that often occur with third-party modified equipment.

Common Lamination Defects & Quick Fixes

Most lamination quality problems come from parameter mismatch rather than equipment failure. Here are the most frequent issues and practical solutions:

Surface wrinkling: Mainly caused by unstable material tension or mismatched feeding speed. Adjust the unwinder tension and calibrate the feeding speed to keep materials flat during lamination.

Poor adhesion and easy peeling: Usually due to insufficient heating temperature or insufficient roller pressure. Appropriately increase the lamination temperature and adjust nip pressure to ensure full fusion of the foam surface.

Board deformation after lamination: Caused by excessive heating temperature or untimely cooling. Lower the heating parameter properly and extend the cooling section time to release internal stress evenly.

FAQs About XPS Thermal Lamination Equipment

Q1: What types of surface materials can the laminator process?

A: It supports PVC film, aluminum foil, fiberglass mesh, non-woven fabric, gypsum paper and thin color steel sheets. We can customize roller structures for special composite materials.

Q2: Can it be retrofitted on our existing XPS extrusion line?

A: Yes. Feininger provides professional retrofit solutions for old and new XPS lines. The whole modification process is efficient and will not cause long-term production shutdown.

Q3: Why is XPS foam so expensive?

A: High-performance XPS foam requires precise physical foaming technology, strict closed-cell rate control and standardized production processes. Its long-term insulation stability and waterproof performance far exceed ordinary foam materials, bringing higher comprehensive value.

Q4: Is XPS foam the same as Styrofoam?

A: No. Styrofoam belongs to EPS bead foam, while XPS is continuous extruded foam with compact closed-cell structure, higher strength and lower water absorption.

Conclusion & CTA

Investing in an xps thermal laminator is an efficient way to upgrade your product structure and increase profit margins. Glue-free thermal lamination technology improves finished laminated foam board quality, reduces production costs and expands application scenarios in construction, HVAC and pipeline insulation.

As a national high-tech enterprise with 20+ years of XPS foaming technology accumulation, Feininger provides fully matched thermal lamination equipment, complete technical debugging and global after-sales services. Our integrated solution ensures higher production stability and product consistency for your composite panel projects.

If you plan to expand composite foam board production or upgrade your existing lamination process, contact Feininger’s technical team to get a customized equipment configuration and professional production solution.
