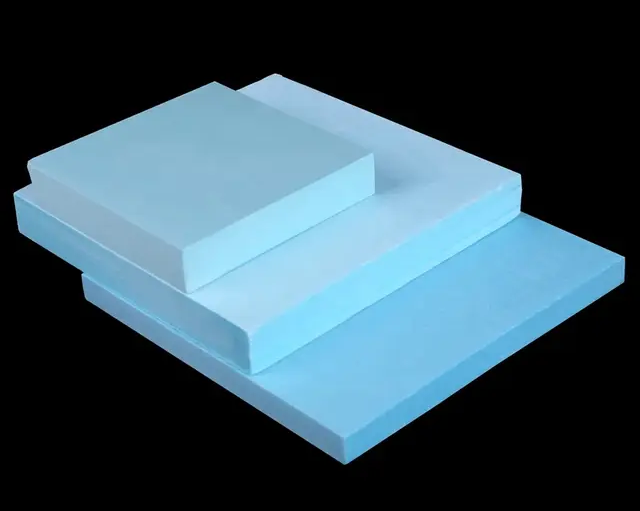

In modern construction and insulation industries, XPS foam boards (extruded polystyrene) have become indispensable due to their exceptional thermal insulation, lightweight structure, and moisture resistance. To achieve these superior properties, the use of environmentally friendly blowing agents—specifically CO2 and N2—has become a global trend. However, to fully leverage their advantages in foam extrusion, precise gas dosing is critical. This is where CO2 metering pumps and N2 metering pumps play a transformative role in improving the overall efficiency, safety, and sustainability of the production line.
The Importance of Blowing Agents in XPS Foam Production
Blowing agents are essential in the XPS manufacturing process because they create the closed-cell structure within the polystyrene, providing insulation and mechanical strength. Traditionally, HFCs and HCFCs were used, but due to environmental concerns, alternatives like CO2 (carbon dioxide) and N2 (nitrogen) are increasingly favored.
CO2 is widely used due to its excellent solubility in polystyrene, which results in fine, uniform foam cells.
N2, on the other hand, is inert, non-flammable, and offers high thermal stability.
Using these gases requires extreme precision. Even slight inconsistencies in the gas injection process can affect foam density, thermal performance, and material waste—leading to production inefficiencies.
What Are CO2 and N2 Metering Pumps?
A metering pump is a type of pump designed to move precise volumes of gas or liquid in a specified time interval, allowing for strict control over dosing rates. When applied to XPS foam extrusion, CO2 metering pumps and N2 metering pumps ensure accurate gas injection into the polymer melt under high pressure.
Key characteristics of gas metering pumps include:
High accuracy and repeatability in gas flow rate
Pressure resistance to accommodate CO2 and N2 at operating conditions
Real-time monitoring and flow adjustments
Compatibility with PLC systems for automatic control
Without proper metering systems, the foaming process becomes unstable, leading to poor foam quality or even safety risks due to over-pressurization.
Benefits of Using Gas Metering Pumps in XPS Lines
Integrating CO2 and N2 metering pumps into XPS extrusion lines provides a wide array of technical and economic benefits:
1. Precise Gas Injection
The core function of a metering pump is to control the exact volume of CO2 or N2 introduced into the extruder. This guarantees uniform foam structure, reduced shrinkage, and improved thermal insulation values.
2. Energy and Material Savings
By injecting only the required amount of gas, manufacturers minimize waste and reduce the need for reprocessing. This enhances material utilization rates and lowers energy consumption.
3. Process Stability and Safety
Gas metering pumps help maintain consistent back pressure and flow during extrusion. This prevents process fluctuations and avoids risks such as surges or blockages.
4. Environmental Compliance
Using environmentally friendly blowing agents like CO2 and N2 with efficient metering helps manufacturers meet global environmental regulations, including European F-Gas bans and LEED requirements.
5. Improved Product Quality
A fine and consistent cell structure directly results in better board compressive strength, dimensional stability, and thermal performance, enhancing the final product's competitiveness.
The Role of Gas Dosing Units in Modern Extrusion

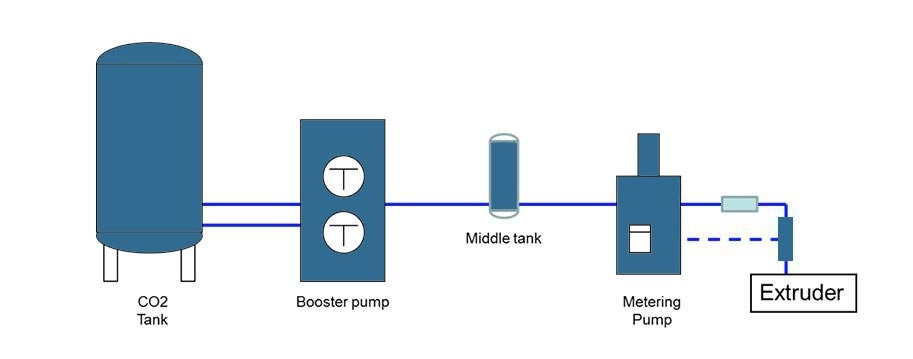

Beyond individual pump components, many XPS production lines now employ integrated CO2 Gas Dosing Units and N2 Gas Dosing Units to streamline gas delivery. These complete systems combine metering pumps, flow regulators, safety valves, and digital controls in a compact, modular setup. By using a dedicated gas dosing unit, manufacturers benefit from reduced installation complexity, enhanced automation, and better gas usage traceability. Such systems also enable faster gas switching and multi-gas blending, providing greater flexibility for different foam product requirements.
Feininger: A Pioneer in CO2/N2-Based XPS Foam Technology
Feininger, a leading manufacturer of XPS production lines and insulation boards in China, has been at the forefront of environmentally responsible manufacturing. The company integrates CO2 and N2 metering pump systems into its XPS extrusion lines to ensure high efficiency and compliance with green building standards.
Stable extruder output with fewer fluctuations
Reduction in consumption of raw materials
Consistent board quality across multiple production batches
Enhanced safety through integrated flow and pressure monitoring
Feininger's systems are especially suited for manufacturers aiming to transition from traditional HFC-based processes to modern, CO2/N2 foaming systems without sacrificing productivity.
CO2 vs. N2 in Metering Pump Applications
Though both gases can be used individually or in combination, they each have distinct behaviors in the extrusion environment:
Parameter | CO2 | N2 |
Solubility in PS | High | Low |
Cell Nucleation | Finer cells | Larger cells |
Reactivity | Slightly reactive | Inert |
Thermal Conductivity | Moderate | Low |
Equipment Demand | Requires higher sealing & safety | Simpler metering system design |
In practice, some manufacturers adopt a CO2/N2 hybrid injection system to fine-tune cell size and reduce raw material costs while still meeting environmental standards.
What to Look for in a Metering Pump System
When choosing a gas metering pump for CO2 or N2 injection in XPS lines, important features include:
High-pressure and corrosion-resistant components
Digital mass flow controllers
Pulse-free continuous delivery
Closed-loop feedback control with alarms
Integration with SCADA/PLC platforms for automated adjustments
Premium systems also provide self-calibration and flow logging, making it easier to monitor gas usage and detect anomalies early.
Conclusion
In the evolving landscape of XPS foam production, precision and sustainability are paramount. CO2 metering pumps and N2 metering pumps serve as critical components that enable manufacturers to:
Optimize production processes
Reduce environmental impact
Improve final board quality
Lower operating costs
With industry leaders like Feininger setting new standards in green XPS foam extrusion, it's clear that advanced metering technology is not just a technical upgrade—but a strategic advantage.
