PET Foam Core: A High-Performance Composite Core Material Solution

Polyethylene Terephthalate (PET) foam core has become one of the most promising structural core materials for composite sandwich applications due to its excellent mechanical performance, environmental sustainability, and broad compatibility with advanced manufacturing technologies. As industrial demand shifts toward lightweight, high-strength, and recyclable materials, PET foam core stands out as a superior alternative to traditional PVC foam cores and expands applications across wind energy, transportation, marine, construction, aerospace, and beyond.

At the same time, manufacturing advancements such as PET sheet and PET foam core extrusion lines enable producers to tailor foam core properties and sheet specifications to meet diverse application requirements. Below is a comprehensive professional exploration of PET foam core properties, its competitive advantages, detailed manufacturing processes, and why advanced extrusion systems produced by Feininger represent a robust industrial solution.

1. Understanding PET Foam Core Material

PET foam core is a closed-cell thermoplastic structural foam made from polyethylene terephthalate resin, engineered to provide high strength-to-weight performance with excellent shear, compressive, and thermal properties. Unlike open-cell or chemical foams, PET foam’s closed‐cell structure supports superior load distribution and dimensional stability, making it especially suitable for composite sandwich panels.

In addition to mechanical performance, PET foam core’s recyclability and resistance to moisture, creep, and fatigue make it ideal for sustainable and high-cycle durability applications, from structural insulation to critical transportation components.

2. Key Mechanical and Thermal Properties of PET Foam Core

PET foam core exhibits a balanced combination of physical properties critical to engineered composites:

• High Shear and Compressive Strength: Closed-cell architecture combined with PET’s inherent strength delivers excellent performance under bending and compression loads.

• Thermal Stability and Insulation: The foam’s structural composition maintains performance at elevated temperatures while providing good insulation characteristics relative to competing foam cores.

• Chemical and Fatigue Resistance: PET foam resists many common chemicals and resists fatigue better than some PVC cores, which is essential for long-term structural use.

These qualities make PET foam core especially suitable for structural sandwich composites where consistent mechanical performance is required over extended service life.

3. PET Foam Core vs PVC Foam Core: Material Advantages

Compared with PVC foam cores, PET foam core exhibits several clear advantages:

• Higher Mechanical Durability: PET foam generally shows better fatigue performance and mechanical stability.

• Environmental Performance: PET foam is recyclable, and advanced production systems use eco-friendly foaming agents such as CO₂ instead of fluorinated chemicals, reducing environmental impact.

• Thermal and Chemical Resistance: PET’s thermoplastic nature combined with closed-cell foam yields higher resistance to heat and chemicals, improving reliability in extreme conditions.

Together, these advantages make PET foam core an increasingly favored alternative to PVC, particularly for high-performance composites in demanding applications.

4. PET Sheet and Foam Production

The production of PET foam core typically begins with drying PET resin to minimize moisture that can degrade polymer chains during melting. Proper dehumidification preserves molecular integrity and optimizes mechanical properties.

PET sheet and foam core extrusion lines melt the dried resin in precision-controlled extruders. In advanced systems such as those engineered by Feininger, co-rotating twin-screw extruders deliver superior mixing and homogeneous melt quality, even when processing recycled PET or complex formulations.

A diffusion-controlled foaming agent delivery system (often CO₂) is blended into the PET melt, creating controlled nucleation sites before exiting the T-die. As pressure drops in the die and melt expands, the foam structure forms with stable, uniform cells—producing low-density PET foam core sheets with consistent mechanical performance.

5. Feininger PET Sheet and Foam Core Production Line

Feininger’s PET sheet and foam core extrusion lines are designed for performance, sustainability, and industrial scalability. Key technical advantages include:

• Modular and Customizable Design: The extrusion lines are built in modular configuration, allowing customization of sheet width, thickness, and structure depending on product design requirements.

• Advanced Foaming Technology: Feininger’s systems leverage carbon dioxide (CO₂) foaming technology to replace traditional fluorine-based agents, significantly reducing production cost and greenhouse gas emissions while ensuring high-quality foam formation.

• High Performance with Low Energy Consumption: Optimized screw designs and automated temperature control improve energy efficiency and throughput, making production more cost-effective over long runs.

• Broad Material Compatibility: Capable of processing virgin, blended, and recycled PET feedstocks, Feininger’s lines support circular economy initiatives and help manufacturers meet sustainability goals.

• Automated and Operator-Friendly Control: Integrated PLC systems allow real-time monitoring, precise thickness adjustment, and automated haul-off and winding, reducing operational labor input and ensuring consistent sheet quality.

6. Typical Extrusion Line Composition and Workflow

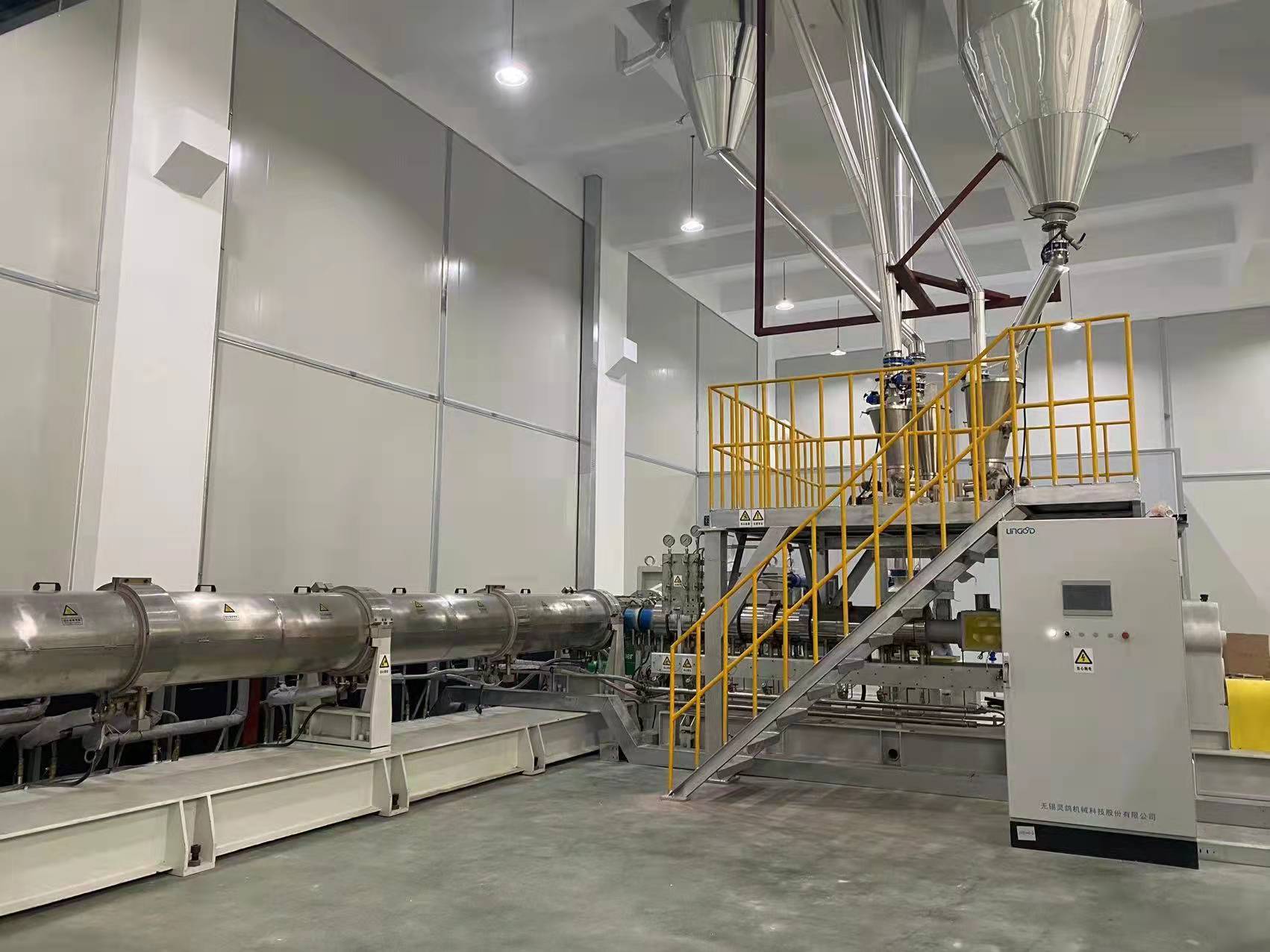

A typical Feininger PET foam core extrusion line includes:

1. Raw material feeding and automatic loading system

2. Twin-screw primary extruder for melting and mixing

3. Blowing agent injection and control system

4. Hydraulic screen changer and pressure regulation

5. Secondary extruder and static mixer

6. Precision T-die and downstream haul-off units

7. Cooling racks, planing machines, and cross-cutting systems

8. Automated rollers and central control station

These components together support high-volume, stable production of PET foam sheets with widths up to ~1250 mm and thickness ranges from ~5 mm to 60 mm or more, with output rates typically between 400 kg/hr and 650 kg/hr on standard configurations.

7. Choosing the Right PET Sheet Extrusion Line for Your Production

When selecting a PET sheet/foam core extrusion line, manufacturers should consider:

• Final Sheet Dimensions: required width, thickness, and structure type

• Material Feedstock: use of virgin, recycled, or mixed PET

• Production Output: daily throughput and efficiency targets

• Automation and Control Level: to support consistent production quality

Feininger’s customized solutions are engineered to match these parameters and deliver reliable performance based on specific production needs.

8. Conclusion

PET foam core is rapidly emerging as a high-performance, recyclable structural core material that outperforms traditional cores in mechanical durability, thermal resistance, and environmental sustainability. Combined with modern extrusion technologies such as Feininger’s advanced PET sheet and foam core production lines, manufacturers can produce consistent, high-quality PET core materials at industrial scale, enabling a wide array of composite applications.

As demand intensifies for lightweight, durable, and sustainable composite structures, investing in optimized PET foam core production systems represents a strategic advantage for manufacturers seeking to lead in advanced material manufacturing.
