Full Automatic Graphite EPS Production Line with Underwater Pelletizing System

1. Introduction

Rising demand for high-efficiency thermal insulation drives the continuous growth of the graphite EPS market. Traditional graphite EPS production often faces pain points: high labor input, uneven bead size, frequent die hole blockage, and unstable product quality.

A fully automated production line integrated with underwater pelletizing technology has become the standard upgrade for large-scale manufacturers. This article breaks down the core structure, production flow, and practical benefits of the Graphite EPS Production Line paired with the Underwater Pelletizing System to support your equipment investment decisions.

2. Graphite EPS Basic Knowledge

2.1 Definition & Raw Material Composition

Graphite EPS (Graphite Expanded Polystyrene) is a high-performance insulation material. It is made by infusing graphite particles, flame retardants, and other additives into polystyrene resin, combined with physical blowing agents. The evenly dispersed graphite particles reflect and absorb thermal radiation, significantly boosting insulation efficiency.

2.2 Core Performance

20%–30% higher thermal resistance than conventional EPS

Excellent compressive strength and dimensional stability

Lightweight, moisture-resistant, with long service life

Fully compatible with standard EPS molding and construction processes

2.3 Graphite EPS vs Conventional EPS

3. Overview of Full Automatic Graphite EPS Production Line

This industrial-grade system is dedicated to the continuous manufacturing of graphite EPS beads. It integrates automatic dosing, twin-screw extrusion, high-pressure blowing agent injection, and underwater pelletizing, realizing unmanned operation across the whole process. Core features:

Full automatic control from raw material feeding to finished packaging

Parallel twin-screw design for fast and uniform material mixing

Compatible with CO₂, pentane, butane, and other blowing agents

Output range 200kg/h to 2000kg/h, matching different production scales. For complete equipment parameters, visit: Graphite EPS Extruded Production Line

4. Core Module: Underwater Pelletizing System

The underwater pelletizing system is the core unit that determines bead quality and production stability and is also the key advantage of the fully automated line over traditional equipment.

4.1 Working Principle

Molten PS mixed with blowing agent is extruded through die holes under high pressure, then cut into uniform particles by a high-speed rotary cutter in circulating water. High-pressure cooling water shapes the beads instantly and locks the blowing agent stably inside.

4.2 Key Components

The underwater pelletizing system consists of five core functional units, whose precision and stability directly determine final bead quality and long-term operating reliability:

Wear-resistant die head assembly: Machined from high-hardness alloy steel, with optimally arranged die holes adapted to graphite-filled PS melt. The smooth inner wall design reduces material residue buildup, which is the primary cause of die hole blockage in graphite EPS production.

High-precision cutter assembly: Equipped with hardened rotary blades with micro-adjustable clearance. Cutter rotation speed can be fine-tuned according to output and melt flow rate, so as to precisely control bead diameter and ensure consistent particle roundness.

 Closed circulating water system: Includes a constant-pressure water tank, a multi-stage filtration unit, and a circulation pump. It maintains stable water pressure and temperature, carries freshly cut beads away from the die surface instantly, and filters fine debris to avoid secondary blockage and protect downstream equipment.

 High-efficiency centrifugal dehydrator: Separates wet beads from cooling water rapidly through high-speed centrifugal force, removing most surface moisture and laying a foundation for subsequent drying, screening and coating processes.

 Integrated temperature & pressure control module: Monitors melt pressure, die head pressure, and circulating water temperature in real time and automatically adjusts operating parameters to keep pelletizing conditions stable even during long continuous production.

4.3 Unique Advantages

Precise water temperature and pressure control to effectively prevent die hole blockage

Produces round, smooth beads with highly consistent size distribution

Closed pelletizing process with low noise and a clean working environment

Fast cooling speed, suitable for high-capacity continuous production. Learn more equipment details: Underwater Pelletizing System.

5. Line Configuration & Complete Production Process

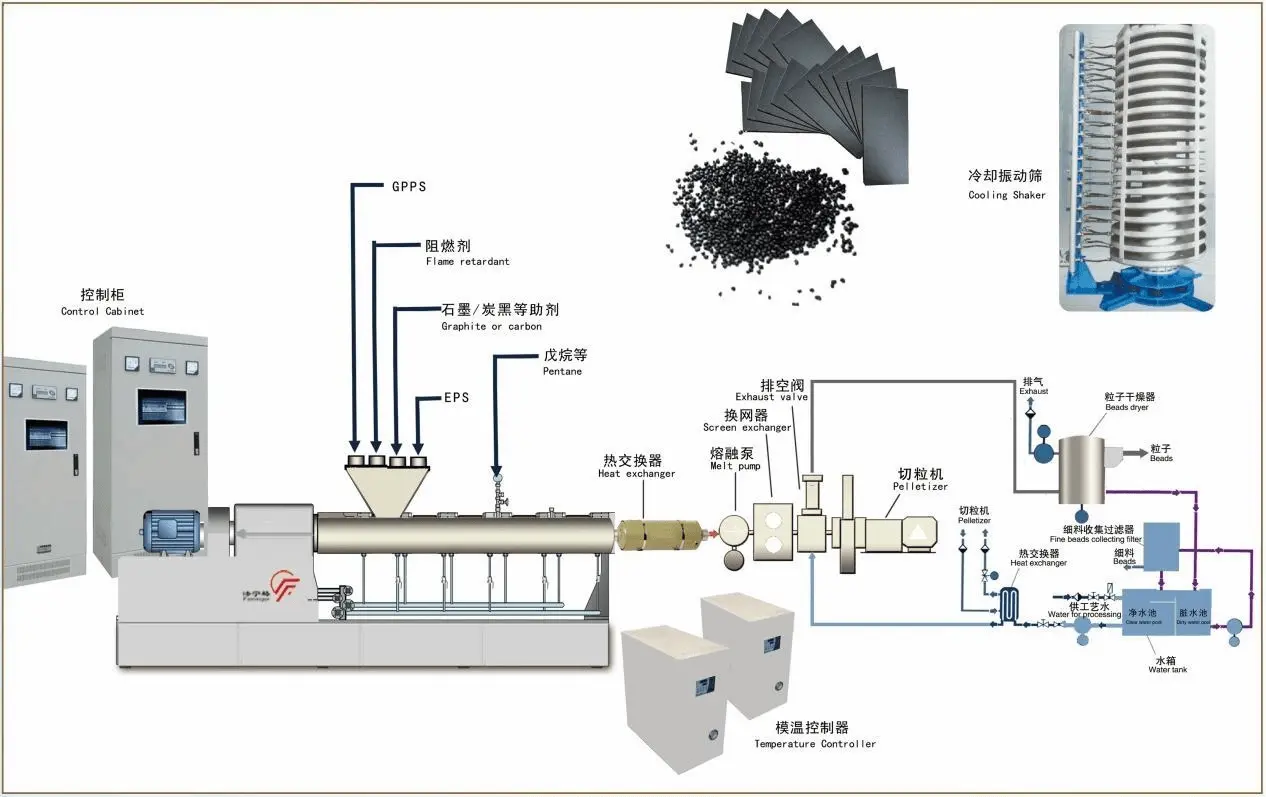

5.1 Main Equipment Composition

1. Automatic feeding & dosing system: Precise proportioning of PS resin, graphite, flame retardant, and other additives

2. Twin-screw extrusion & plasticizing unit: Fast melting and uniform mixing of raw materials

3. High-pressure blowing agent injection system: Stable and quantitative blowing agent delivery

4. Underwater pelletizing host: High-precision die head and cutter for bead forming

5. Dewatering, drying, screening & coating unit: Post-processing of finished beads

6. Central intelligent control system: One-click operation with real-time parameter monitoring

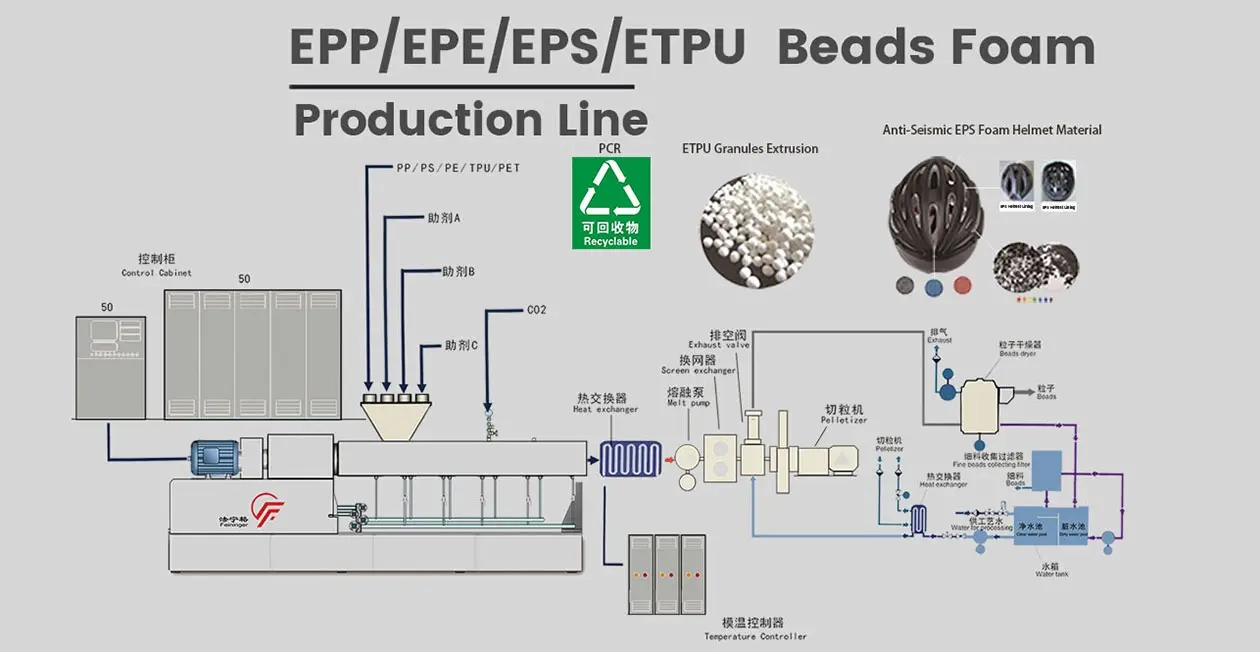

5.2 Standard Production Flow

Raw material mixing → Plasticizing extrusion → Blowing agent blending → Underwater pelletizing → Cooling & dewatering → Screening & coating → Finished product packaging. For a detailed step-by-step explanation: Process Flow of EPS Graphite Production

6. Advantages of the Integrated Production Line

Production side: Fully automatic operation cuts labor demand by over 50%, eliminates human error, and supports 24-hour stable production.

 Product side: Uniform bead size, stable foaming density, low defective rate, and excellent processability for downstream molding.

 Operation side: Optimized screw structure and energy-saving design reduce unit energy consumption; modular structure simplifies daily maintenance with a low failure rate.

 Technology side: Scientific water temperature and pressure control solve the common pain point of die hole blockage in traditional pelletizing, reducing material waste.

7. Main Applications of Graphite EPS Products

Construction field: External wall insulation, roof insulation, underfloor heating systems, passive house energy-saving projects

Packaging field: High-end fragile product packaging, cold chain transportation insulation boxes

Other fields: Prefabricated building components, civil engineering filling, shockproof protective materials

8. Production Line Selection Guidelines

1. Match required bead size, output capacity and automation level according to your actual production demand.

2. Focus on the performance of the underwater pelletizing system, especially temperature & pressure control accuracy and anti-blocking design.

3. Evaluate overall energy consumption, environmental compliance of the foaming process, and the supplier’s after-sales system.

4. Confirm whether the supplier supports customized adjustments for special graphite EPS formulas and special bead specifications.

9. Conclusion

The fully automatic graphite EPS production line with an integrated underwater pelletizing system greatly improves production efficiency and product consistency while cutting operating costs, and it is the mainstream development direction of the industry.

As a professional extrusion equipment manufacturer, Feininger provides mature and reliable graphite EPS production lines with complete turnkey services. Contact us for customized equipment solutions and detailed quotations.
