PET Sheet Line for Aerospace & Marine PET Foam Sheet Manufacturing

1. Introduction

The aerospace and marine industries are seeing surging demand for lightweight, high-performance structural core materials. Traditional core materials like PVC foam face growing limitations in environmental compliance, high-temperature resistance, and recyclability, while PET foam sheets have emerged as a superior alternative for high-end sandwich structures.

Mass production of reliable aerospace and marine-grade PET foam sheets relies heavily on a professional PET sheet line and a high-precision PET sheet making machine. This article breaks down the performance advantages of PET foam, its complete extrusion production process, core equipment composition, and application value in aerospace and shipbuilding sectors, providing practical guidance for equipment investment.

2. Fundamentals: PET Foam Sheets and Key Characteristics

2.1 Definition of PET Foam Sheets

PET foam sheet is a closed-cell thermoplastic structural foam manufactured from polyethylene terephthalate via advanced extrusion foaming technology. As a high-performance core material for sandwich structures, it delivers balanced mechanical strength, lightweight design, and environmental compatibility, making it ideal for demanding industrial scenarios.

2.2 Key Performance Advantages

• Outstanding mechanical properties: High compressive strength and shear modulus to support load-bearing sandwich structures

• Excellent thermal stability: Withstands short-term processing temperatures of ~150°C and long-term service temperatures of 100°C, adapting to high-temperature composite molding

• 100% recyclability: Production scraps and end-of-life products can be fully reprocessed, supporting circular economy goals

• Ultra-low water absorption: Uniform closed-cell structure blocks moisture penetration, maintaining stable performance in humid and salt-spray environments

• Flexible processability: Compatible with most resin systems and molding methods, and can be thermoformed into complex shapes.

2.3 Side-by-Side Comparison: PET Foam vs. PVC Foam

PET foam outperforms PVC foam in environmental attributes and high-end performance indicators, making it the preferred upgrading choice for aerospace and marine core materials.

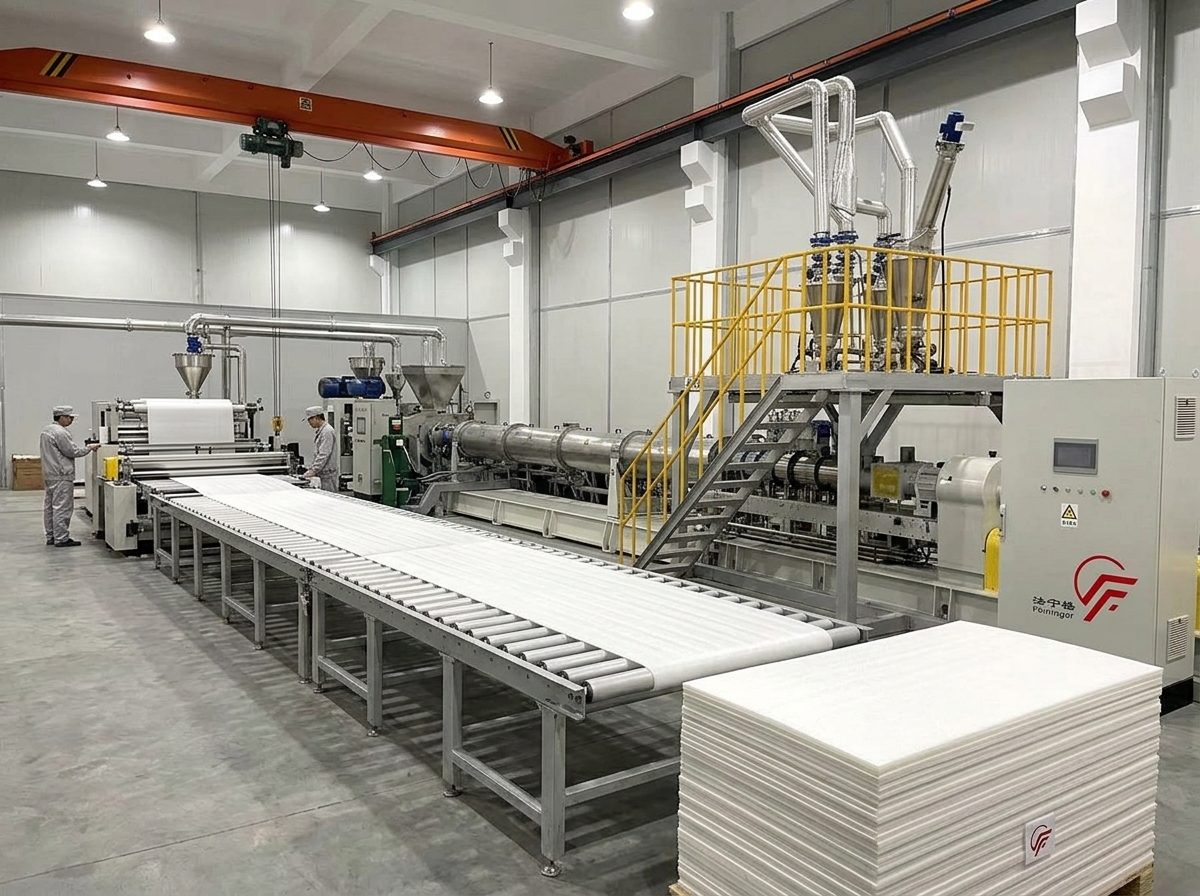

3. PET Sheet Production Line

3.1 Core Production Process

High-end PET foam sheets are produced via supercritical fluid extrusion foaming technology, the mainstream process for manufacturing industrial-grade foam cores. The complete production flow is as follows:

1. Raw material drying: PET chips are dried by dehumidifying hot air to remove moisture and avoid melt hydrolysis

2. Metered feeding: Virgin/recycled PET and additives are dosed accurately by a gravimetric feeding system

3. Reactive extrusion & mixing: Twin-screw extruder fully plasticizes materials; chain extenders are added to improve melt strength and foaming performance

4. Blowing agent injection: Supercritical CO₂ is steadily injected into the melt and uniformly mixed

5. Cooling & homogenization: Secondary single-screw extruder cools the melt to optimal foaming temperature

6. Die extrusion & foaming: Melt exits the slot die, pressure drops rapidly, and cells nucleate and grow uniformly.

7. Sizing & finishing: Calibration system controls dimensions, followed by cooling, surface planing, edge trimming, and cross-cutting

Our mature PET sheet line adopts this advanced process to stably produce high-quality PET foam sheets for high-end industries. Learn more about equipment configuration from the Feininger PET Foam Core Production Line.

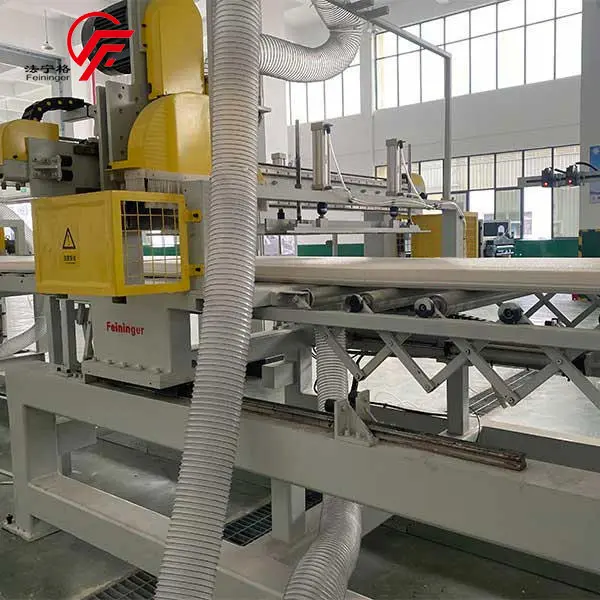

3.2 Main Equipment (PET Sheet Making Machine)

A complete pet sheet making machine consists of four core systems:

• Drying & feeding system: Dehumidifying dryer and multi-station automatic loading unit ensure stable raw material conditions and precise formula ratio

• Extrusion & foaming unit: The heart of the pet sheet line, featuring a proven twin-screw + single-screw two-stage structure, paired with a precise CO₂ injection system and static mixer for uniform cell structure

• Sizing & finishing unit: Includes haul-off machine, cooling racks, online planer and cross cutting system, controlling sheet thickness (5–60mm), width (1000–1250mm), and surface precision

• Intelligent control system: PLC central control station with HMI interface monitors and adjusts temperature, pressure, speed, and gas injection volume in real time, supporting long-term stable production

Standard models achieve an output of 400–650kg/hr and a foam density range of 60–120kg/m³, covering most aerospace and marine application requirements.

4. Applications in Aerospace & Marine

4.1 Applications in the Aerospace Field

PET foam core sheets are widely used in aircraft and spacecraft sandwich structures:

• Structural sandwich cores: Applied in fuselage panels, wing parts, and fairings, achieving up to 50% weight reduction compared with traditional materials, lowering fuel consumption and carbon emissions

• Cabin interior components: Delivers excellent thermal insulation and sound absorption to improve cabin comfort; meets strict aviation flame, smoke, and toxicity (FST) safety standards.

• UAV structures: High strength-to-weight ratio supports lightweight design of drone wings and fuselages, extending flight range and payload capacity

• Radome & fairings: Maintains stable dielectric properties and dimensional stability under complex flight environments

4.2 Applications in the Shipbuilding Field

PET foam solves long-standing pain points of traditional marine materials in corrosion and moisture resistance:

• Decks & superstructures: Serves as core material of composite sandwich panels, significantly reducing hull weight while maintaining structural strength, improving sailing speed and energy efficiency

• Cabin partitions & bulkheads: Ultra-low water absorption and closed-cell structure resist long-term erosion of humid salt-spray marine environment, avoiding mildew and performance degradation.

• Hull sandwich structures: Excellent impact and fatigue resistance, adapt to long-term vibration and load changes during navigation

• Luxury yacht interiors: Good thermoformability supports complex curved surface design, balancing aesthetic effect and structural performance

5. Line Selection Tips

For manufacturers targeting aerospace and marine-grade PET foam sheets, focus on three key points when selecting a PET sheet line:

1. Performance & specification matching: Verify whether the equipment can stably produce sheets with the required density, thickness, and width, and whether cell uniformity meets high-end industrial standards.

2. Environmental & recyclable processing capacity: Prioritize lines with CO₂ physical foaming technology to comply with global environmental regulations. Ensure the equipment supports both virgin and recycled PET to reduce costs and meet low-carbon requirements. Learn more about CO₂ foaming benefits at Benefits of PET Sheet Extrusion Line with CO₂ Foaming Technology.

3. Precision, stability & total cost: Choose a pet sheet making machine with a mature two-stage extrusion structure and intelligent control system for low failure rate and long service life. Evaluate overall energy consumption, yield rate, and after-sales support for optimal total cost of ownership. For a full selection guide, refer to How to Choose the Best PET Foam Sheet Production Line.

6. Industry Trends

• Continuous lightweight upgrade: Aerospace and marine industries keep pursuing weight reduction to improve energy efficiency, driving sustained growth in demand for high-performance PET foam core materials

• Mandatory environmental compliance: Global regulations are restricting non-recyclable traditional foam materials, and 100% recyclable PET foam is becoming the mainstream development direction

• Technology iteration: CO₂ foaming pet sheet lines are replacing traditional fluorine-based foaming equipment and becoming the standard configuration for new high-end PET foam production

• Customized demand: Differentiated performance requirements across application scenarios promote modular and customizable development of production equipment

7. Conclusion

PET foam sheets have become an ideal high-performance core material for aerospace and marine industries with their excellent mechanical properties, environmental friendliness, and durability. Investing in a stable, professional pet sheet line is the key for manufacturers to seize market opportunities and deliver qualified high-end products.

Feininger provides a mature and reliable pet sheet making machine with advanced CO₂ foaming technology, supporting both virgin and recycled PET materials with customizable output and specifications. We offer full-cycle turnkey solutions from process design to on-site installation and technical support. Contact us today to get a customized PET foam sheet production line solution for your business.
